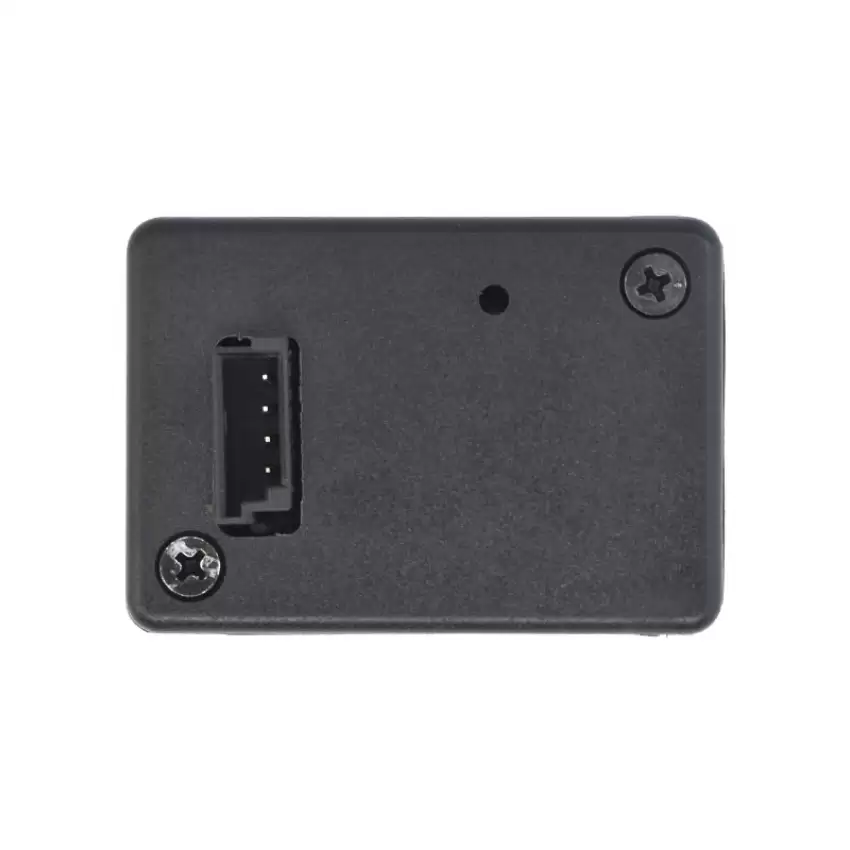

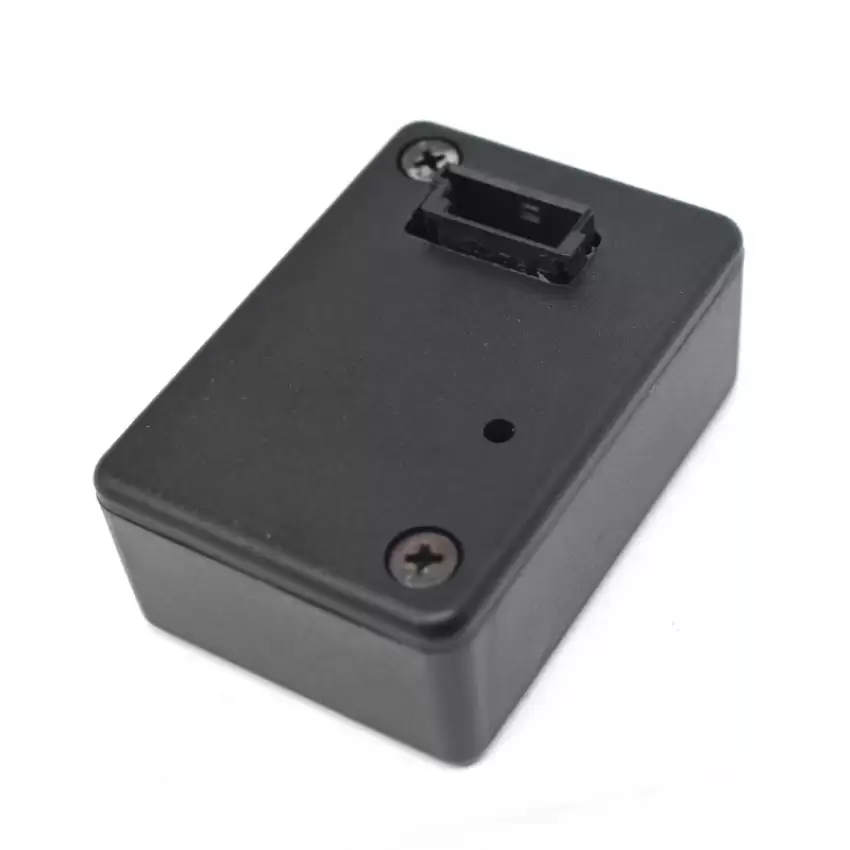

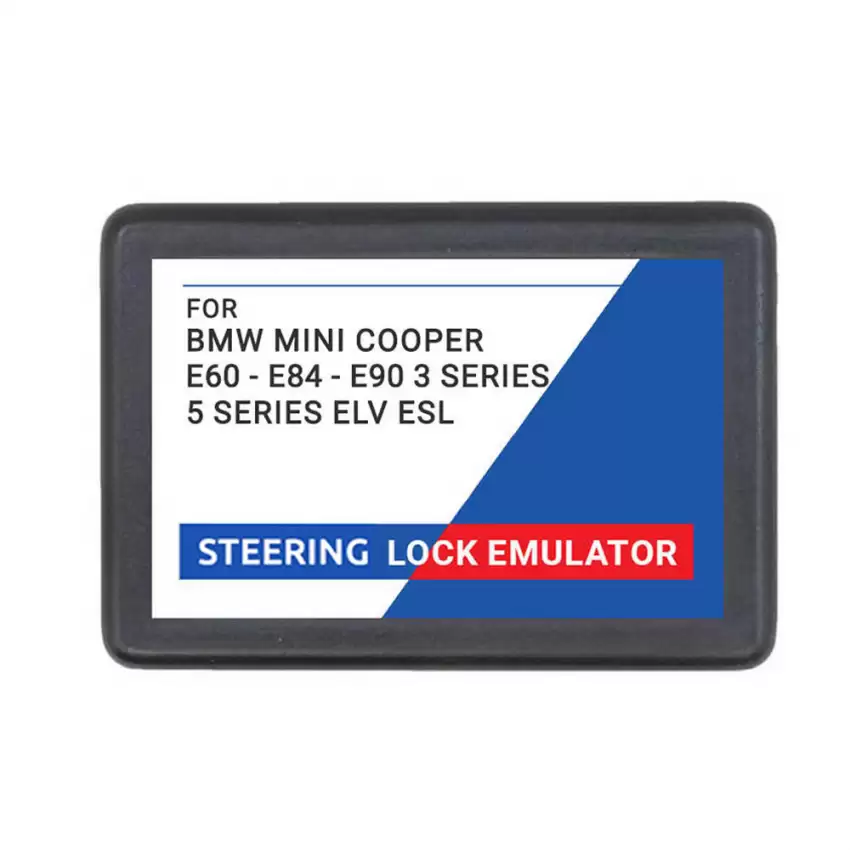

Steering Lock Emulator Plug and Start for BMW Mini Cooper E60 - E84 - E87 - E90 3 Series 5 Series ELV ESL

Series 5 ELV/ESL Steering Lock Emulator Guide

How to Solve Vehicle Problems Using the Emulator:

1. Disconnect the connector with pins from the ELV (Electronic Steering Lock).
2. Connect the removed connector to the emulator.
3. Start the vehicle.

Key Features of the BMW and Mini Cooper Emulator:

• Compatibility: Supports BMW models (E90, E91, E92, E93, E60, E61, E63, E64) and Mini models (R55, R56).
• Plug-and-Play: No additional coding or hardware required; simply connect the emulator to activate it.
• Functionality: Provides locking and unlocking functions by accessing the CAS (Car Access System) ELV module.

Overview of ELV/ESL Steering Lock Issues:

• ELV failures are mechanical problems in the steering column lock.
• These failures can occur regardless of the vehicle key's condition.
• When the ELV malfunctions, the vehicle key won't start the car as the steering lock won't disengage.
• To resolve this, a new ELV must typically be installed and programmed, which is costly and time-consuming.

Benefits of the ELV/ESL Steering Lock Emulator:

• Cost-Effective Solution: Avoid the high costs of replacing and programming a new ELV.
• Immediate Fix: Bypasses ELV/ESL malfunctions, allowing the car to start without delay.
• No Coding Required: Simply connect the emulator to fix the issue.

General Instructions for Using the Emulator:

1. Ensure the steering wheel is unlocked and the vehicle can start.
2. Disconnect the 4-wire connector from the steering column.
3. Locate and connect the appropriate cables (refer to the installation guide).
4. Use a diagnostic tool to clear error codes and reset counters if needed.
5. Install the emulator with the help of a certified ASE mechanic.

Step-by-Step Installation:

1. Remove the pin connector from the ELV.
2. Plug the connector into the emulator.
3. Start the vehicle to confirm proper installation.

Important Notes:

• Some cases may require clearing automobile access system error codes using a diagnostic tool.
• Always have the emulator installed by a professional ASE mechanic to ensure accuracy.
• This emulator is designed to emulate a functional steering lock as long as the ELV fault has been properly diagnosed.

Compatibility:

The emulator is compatible with the following models:

• BMW: E60, E84, E87, E90 (3 Series, 5 Series, and more).
• Mini Cooper: R55, R56.

By using the ELV/ESL Steering Lock Emulator, you can bypass steering lock errors and ensure your vehicle operates smoothly without costly repairs or delays.
