Steering Lock Emulator Simulator For Nissan Altima Maxima Patrol

Nissan Emulator - Altima, Patrol, Maxima Steering Lock Emulator Guide

Overview:

The Nissan Altima, Patrol, Maxima, 370Z, GTR, Murano, and Juke (2007–2011) Steering Lock Emulator provides a plug-and-play solution to fix common ELV (Electronic Steering Lock) malfunctions. It eliminates the need for costly repairs and programming by bypassing the faulty ELV system.

Key Features:

• Plug-and-Play Design: No coding or programming required; simply connect and use.
• Wide Compatibility: Supports Nissan models, including Altima, Patrol, Maxima, 370Z, GTR, Murano, and Juke (2007–2011).
• User Feedback: Includes LED indicators and lock/unlock sounds for clear operational status.

ELV/ESL Steering Lock Issues:

• Cause of Failure: ELV is prone to mechanical failures in the steering column lock, independent of the key’s condition.
• Symptoms: Even with a functional key, the vehicle won’t start because the steering lock fails to disengage.
• Standard Resolution: Traditionally, a new steering column lock must be ordered and programmed, which is expensive and time-consuming.

Behavior of the Nissan Emulator:

• LED Indicators:
  • Green LED: Steering Column Lock (SCL) is unlocked.
  • Red LED: SCL is locked.
• Sound Indicators:
  • Unlock sound plays when the SCL is unlocked.

Installation Instructions:

1. Preparation:
   • Turn off the car.
   • Remove the steering wheel's under cover to access the defective SCL unit.
2. Disconnect the Faulty Unit:
   • Unplug the defective SCL cable.

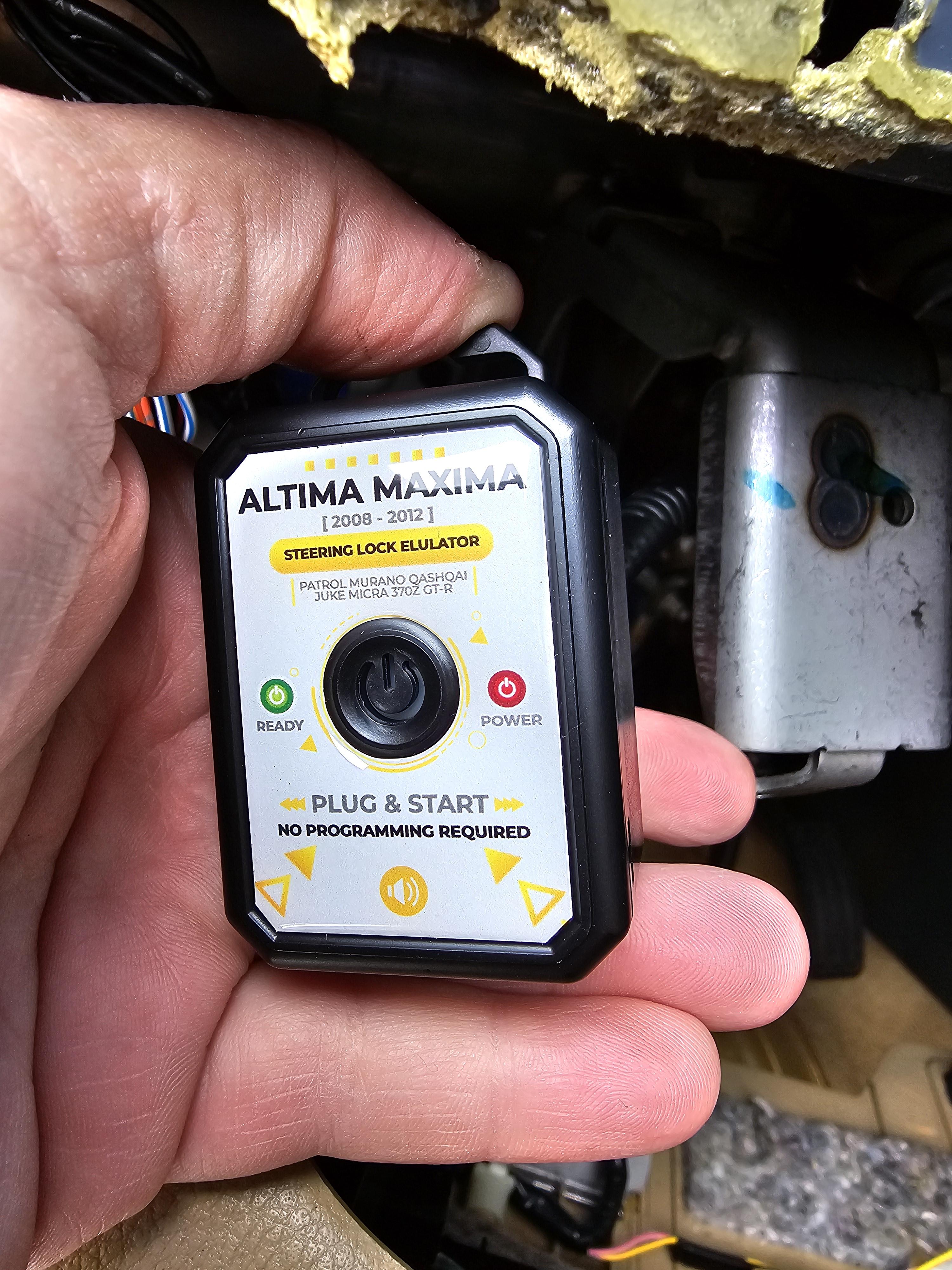

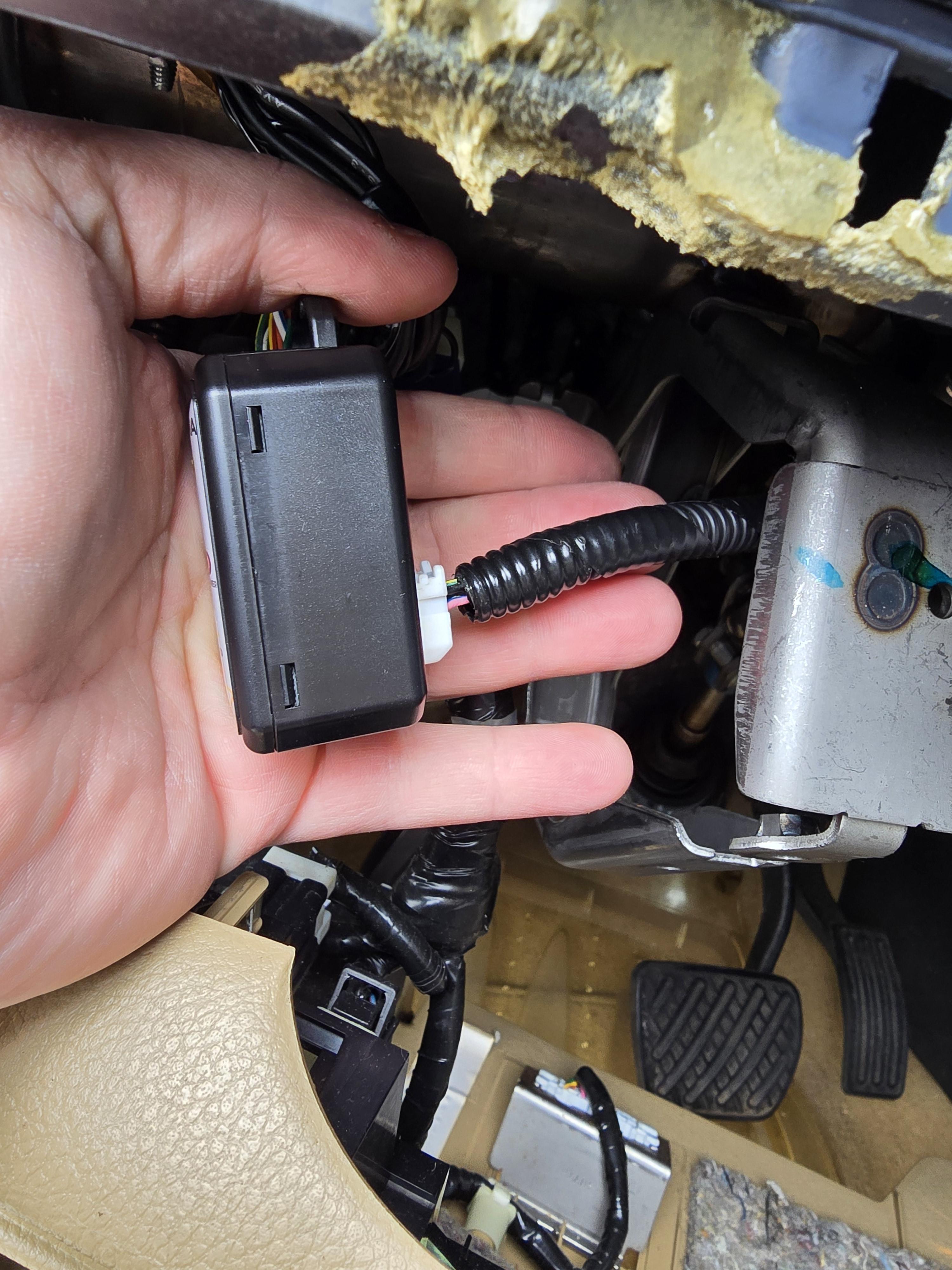

3. Connect the Emulator:
   • Plug the cable into the MK9578 Emulator.
4. Verify Installation:
   • Turn on the car.
   • Check the emulator's LED: It should switch from Red (locked) to Green (unlocked), accompanied by the unlocking sound.
5. Start the Vehicle:
   • Turn on the engine, and the vehicle should now operate normally.

Advantages:

• Cost-Effective: Avoids expensive dealership repairs and long waiting times.
• Ease of Use: No specialized tools or knowledge required for installation.
• Reliability: Bypasses ELV malfunctions to ensure consistent vehicle functionality.

By using the Nissan Steering Lock Emulator, you can resolve steering lock issues efficiently and keep your Nissan running without unnecessary downtime or expense.
