Overview

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	24.69oz
Dimension	7.79x4.52x1.22in
Condition	New

Report incorrect product information

Obdstar / Key Programming Devices

The P50 represents the latest advancement in intelligent airbag reset equipment from OBDSTAR Technology Co., Ltd. With its powerful functions and extensive coverage, it supports 81 brands and over 11,200 ECU part numbers, including some MCU variants. The device is powered by the RK3128 Quad-Core processor, ensuring exceptional speed and smooth operation. Additionally, its 5-inch capacitive touch screen provides a touch-sensitive interface for intuitive navigation and operation.

P004 adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:

Programming devices keep in normal communication no matter turn on or off 12V power button;
Turn on or off 120Ω resistance at any time for CANBUS ECU;
Support 6&14 and 3&11 CANBUS Protocol at the same time;
Optional CANFD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.);
Support GM Single CAN(GM SCAN);
Support Kline Protocol;
P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
DB15 connector can communicate with any OBDII-16 I/O interface.

Functions

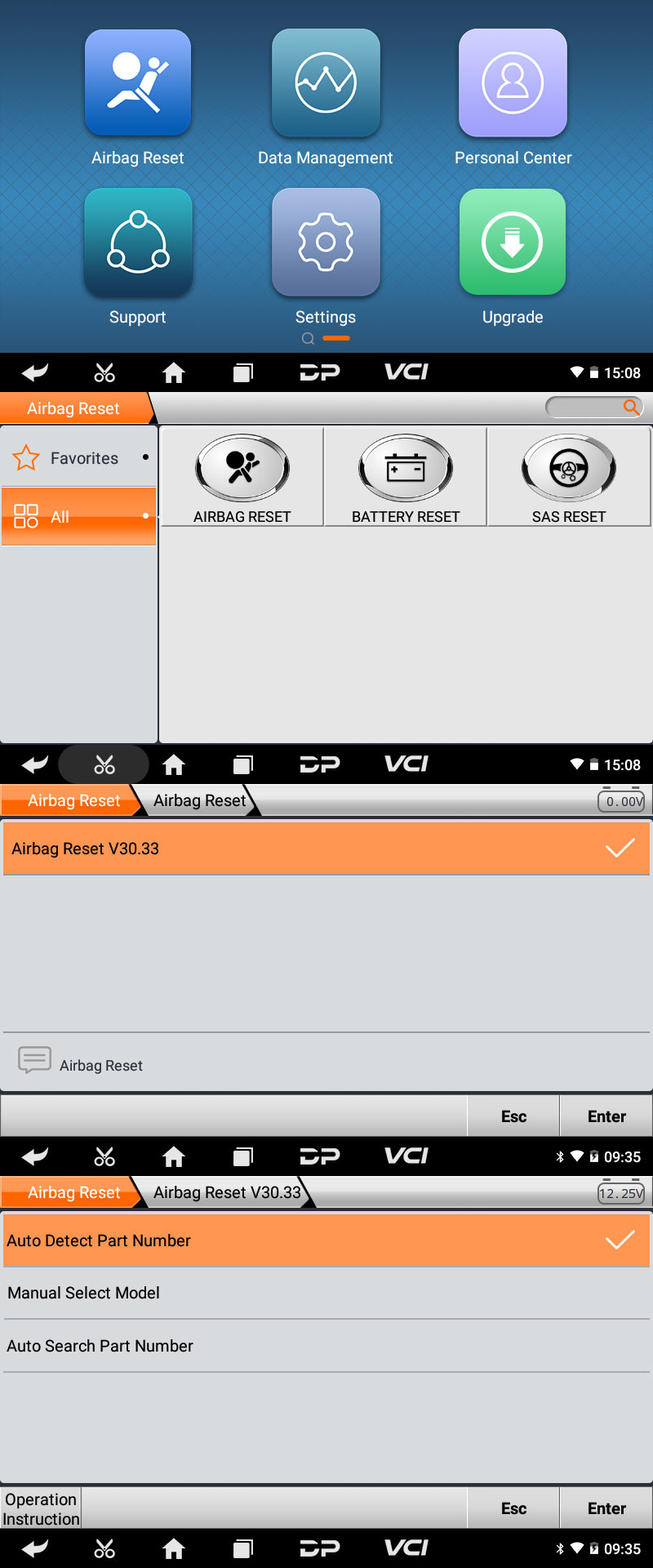

supports one-click airbag reset for 81 brands and 11200+ ECU part No.
supports fuzzy search for ECU part No.

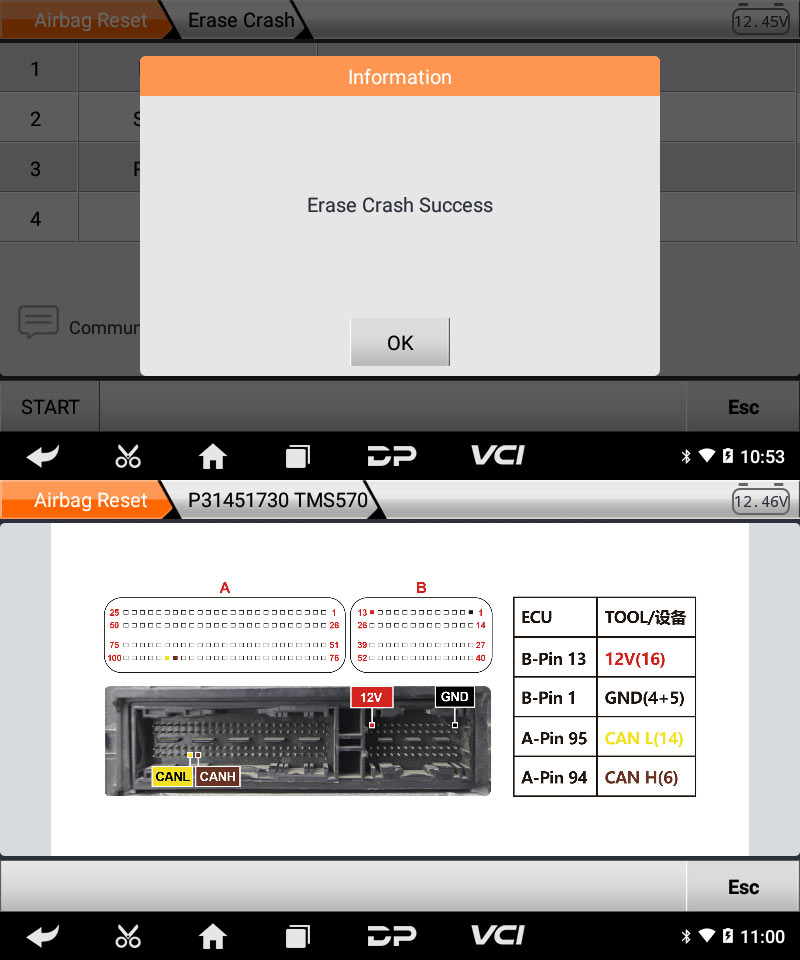

contains clear BENCH mode wiring diagram
contains powerful and complete description files for fault code

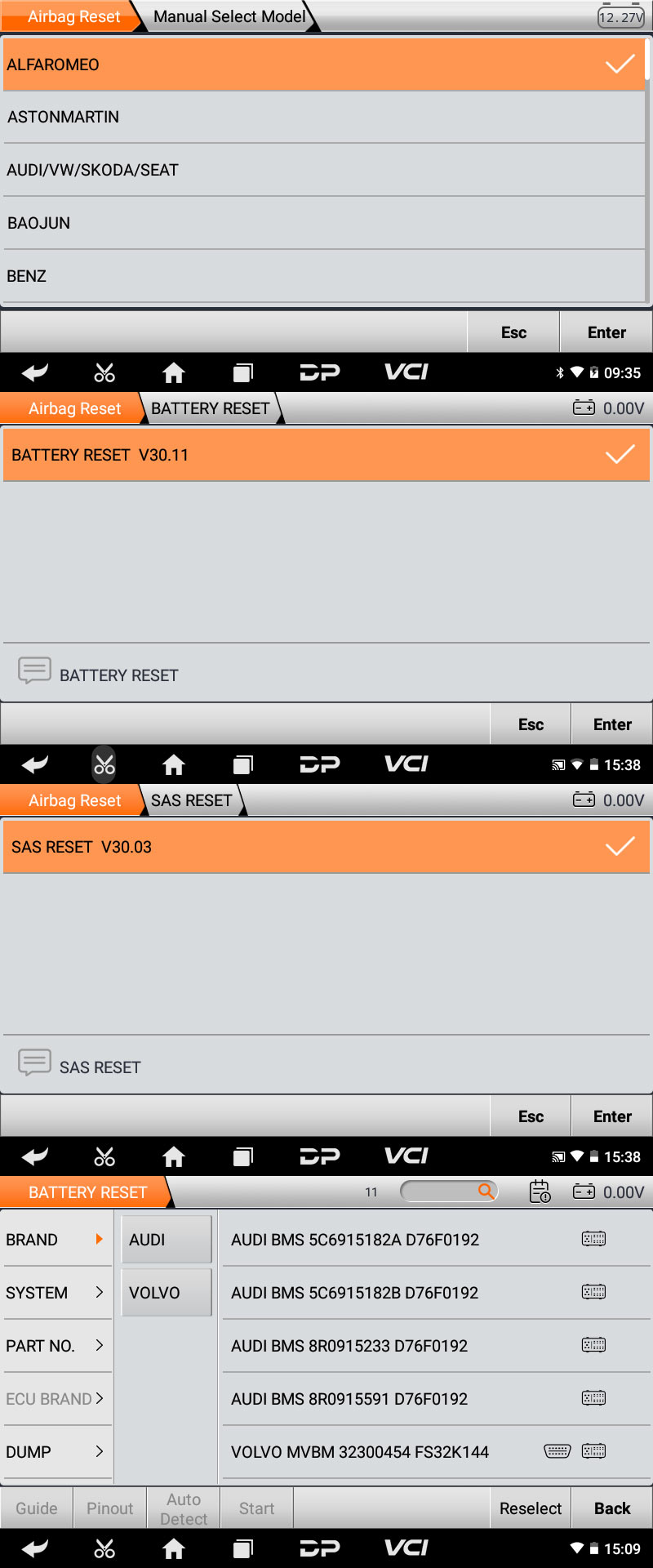

support battery reset(MVBM) function

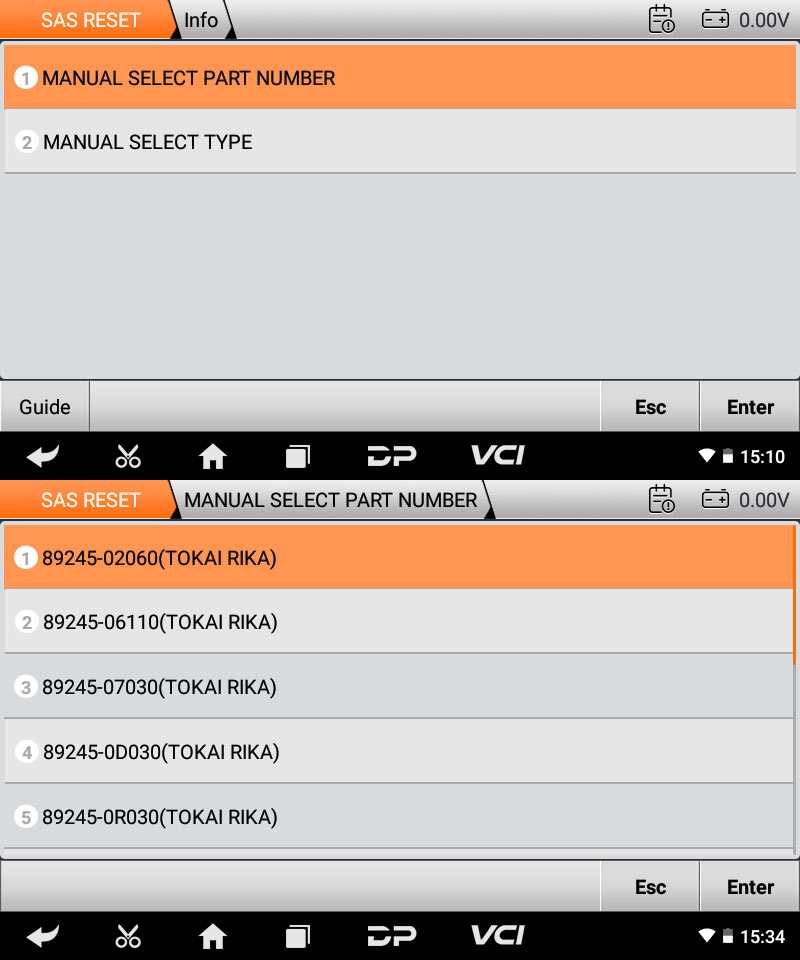

support SAS reset function

Advanced Functions

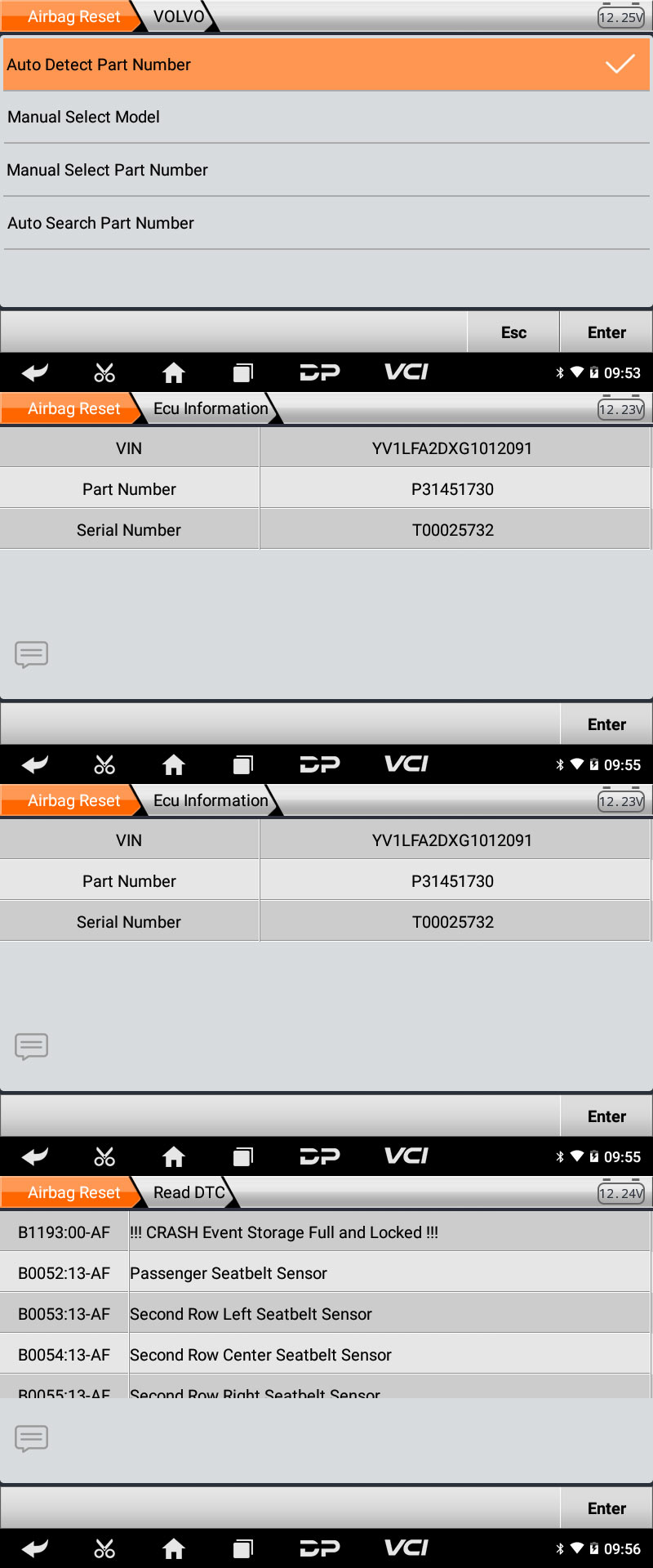

Ecu Info.
Read DTC
Erase DTC
Read EEPROM
Write EEPROM
Read FLASH
Write FLASH

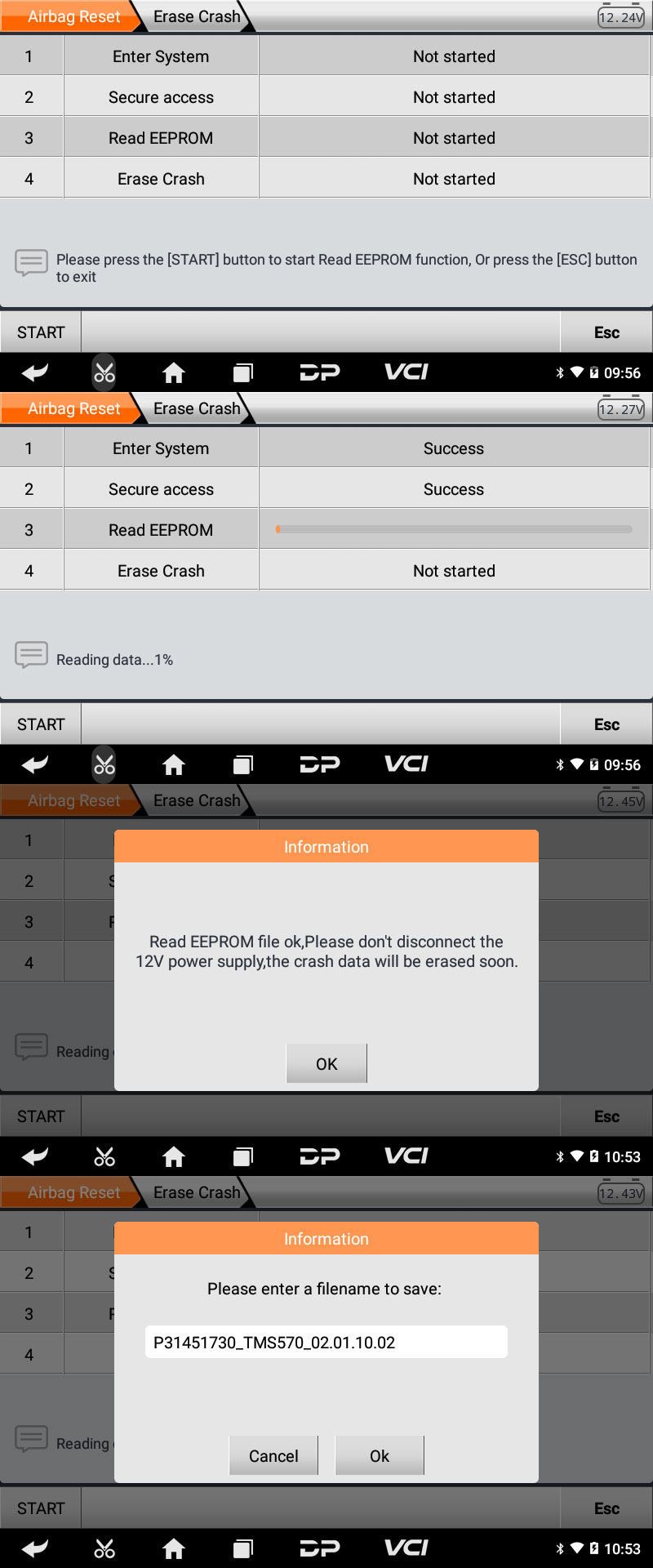

Erase Crash
Write VIN

Coverage

1. Supported Brands(81 Brands)

ACURA
ALFAROMEO
ASTONMARTIN
AUDI
BAIC
BAOJUN
BENTLEY
BENZ
BMW
BRILLIANCE
BUICK
CADILLAC
CHANGAN
CHERY
CHEVROLET
CHRYSLER
CITROEN
DACIA
DATSUN
DODGE
FAW
FERRARI
FIAT
FORD
GEELY
GMC
GREATWALL
HAIMA
HONDA
HONGQI
HYUNDAI
INFINITI
ISUZU
JAGUAR
JEEP
KIA
LADA
LAMBORGINI
LANCIA
LANDROVER
LEXUS
LINCOLN
MASERATI
MAZDA
MG
MINI
MITSUBISHI
NISSAN
OPEL
PEUGEOT
POLESTAR
PORSCHE
RENAULT
ROEWE
SCION
SEAT
SKODA
SMART
SSANGYONG
SUBARU
SUZUKI
TESLA
TOYOTA
UAZ
VOLVO
VW
ZOTYE
