Autel MaxiVideo MV480 Dual-Camera Digital Inspection Videoscope
| Recommended Use | Indoor |
| Optimal Viewing Distance | 0.79 |
| Image Capture | JPG images (1920 x 1080 pixels), MP4 videos (1920 x 1080 pixels) |
| Screen Type Display | 4.1 |
| Display Resolution | 1200 x 720 pixels |
| Power Supply | Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh) |
| Tested Battery Life | 243 x 116 x 122mm (9.6 |
| Weight | 0.422 kg (0.93lbs) |
| Recording Medium | Micro SD card (8GB Standard/128GB Max) |
| Image Controls | Zoom, low light vision |
| Lighting | Fully adjustable LED, Flashlight |
| Cable Reach | 1m (39.4 |
| Imager Heads | 8.5mm (0.33 |
| Waterproof | To a depth of 1m (39.4 |
| Additional Ports | TF, Mini USB, Micro HDMI |
| Operating Temperature | Main unit: 14°F to 122°F (-10°C to 50°C), Cable: 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity | 5% – 95% non-condensing |
| Condition | New |
Autel / Diagnostic Tools

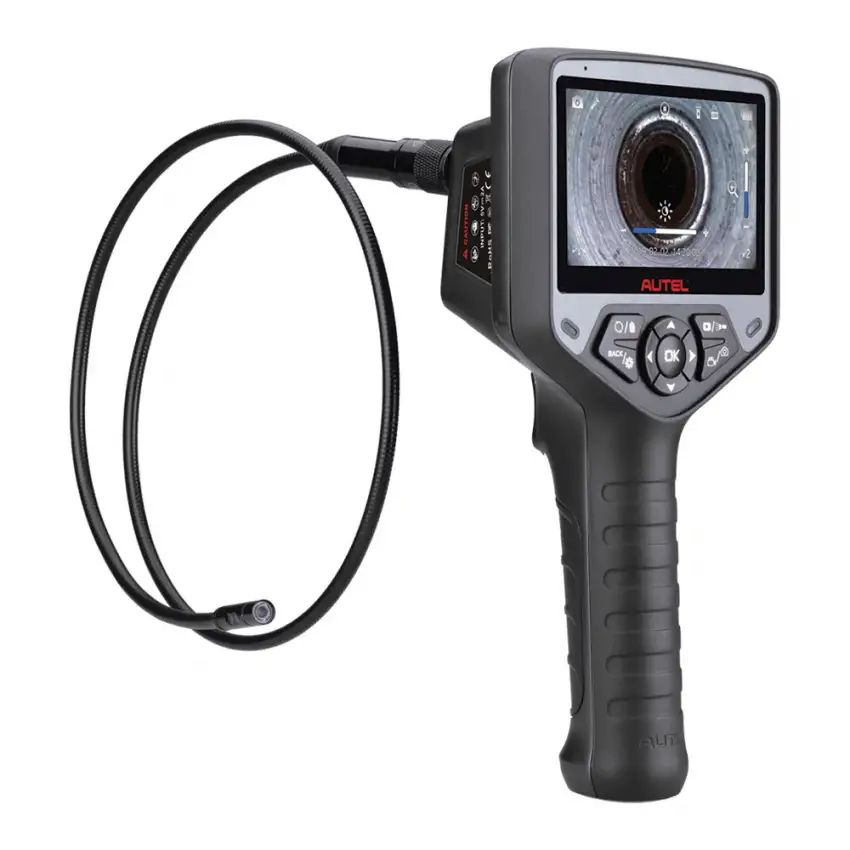

The MaxiVideo MV480 dual-camera digital videoscope is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible 39.4-inch cable, 10-level adjustable LED light, and 70-degree field of view. The MV480 2-megapixel camera captures high resolution (1920 x 1080) stills and videos with 1-button quick image capture and video recording. The dual-camera 8.5mm probe provides front and side cameras that can be viewed independently or together for a wider viewing angle. The MV480 also features a new audio annotation function and bright LED flashlight on the back of the handle. The handheld unit features a 4.1-inch 1200×720 full color LCD display, and a built-in 2600 mAh battery with up to 4 hours of continuous use.
Description:
- Record/Playback High Resolution Images and Videos (1920 x 1080)

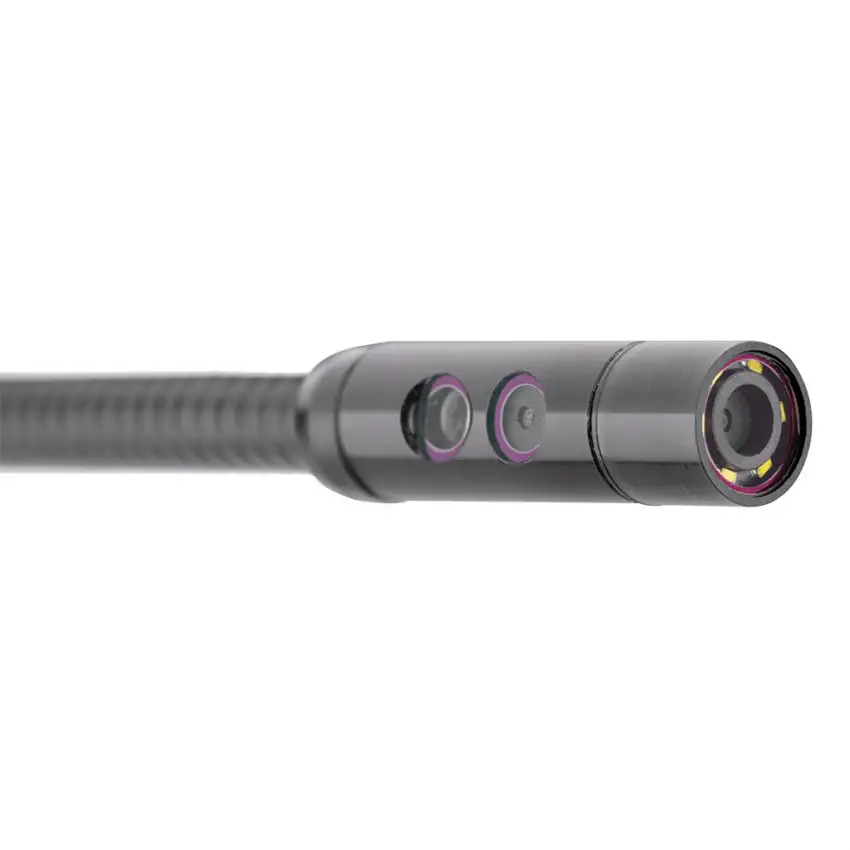

- Dual Front and Side Cameras for Wider Viewing Angle
- 4.1” Color LCD Display (1200 x 720)
- 1-Button Quick Image Capture and Video Recording
- 70-Degree Field of View for Expanding Viewing Angle
- Add Audio Annotation for Detailed Review
- Micro HDMI-output Enables Streaming to Larger Monitors
- Freeze-Frame Camera Stills or Video Recording
- On-Screen Horizontal/Vertical Reverse
- 7x Digital Zoom for More Detailed Inspection
- Includes 8GB Micro-SD card, Supports Up to 128GB
- Includes Mini-USB Cable for Uploading Images and Videos
- More than 10,000 Lux, Adjustable 10-Level LED Illumination
- Built-In Rechargeable 2,600 mAh Battery for 4 Hours of Continuous Use
- 39.4-Inch Semi-Rigid, Flexible, Watertight Cable
- Includes Magnet and Hook Cable Accessories
- 8.5mm Probe Fits Most Spark Plug Holes
- Compatible with 5.5mm Camera Head (Sold Separately)
- Includes 1-Year Warranty on Materials and Workmanship
