Autel AutoLink AL529HD OBD2 OBD2/EOBD Heavy Duty Code Scanner and Emission Tester

Autel AutoLink AL529HD OBD2 OBD2/EOBD Heavy Duty Code Scanner and Emission Tester-0 thumb
Autel AutoLink AL529HD OBD2/EOBD Heavy Duty Code Scanner & Emission Tester thumb
DT-AUT-AL529HD

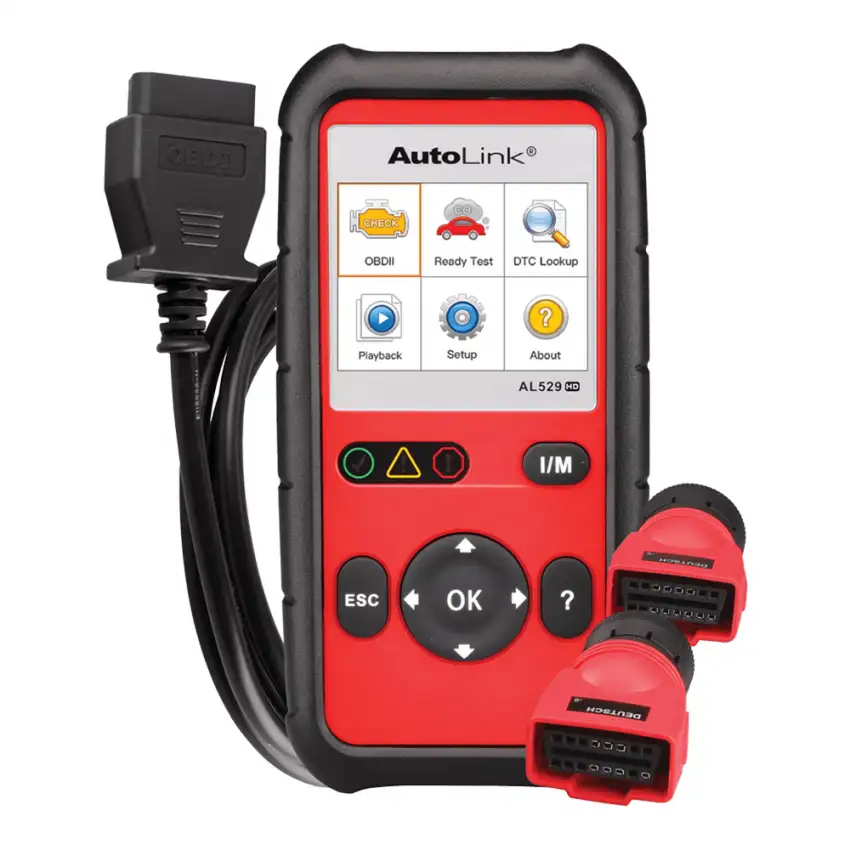

Autel AutoLink AL529HD OBD2 OBD2/EOBD Heavy Duty Code Scanner and Emission Tester

$149.95Was $199.95 (Save 25%)

FREE GIFT: Free upon request with any KEY4 order of $2,500 or more.
Display2.8-inch LCD (320×240 dpi)
ConnectivityUSB mini 2.0 OBD II DB15
Operating Temperature0℃ to 60 ℃ (32℉ to 140℉)
Storage Temperature-20℃ to 70 ℃ (-1℉ to 158℉)
External Power9.0 to 28.0 V power provided via vehicle battery
Dimensions (LxWxH)183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”)
Weight242 g (0.533 lb.)
ConditionNew
Report incorrect product information

The AutoLINK AL529HD is a heavy-duty engine code reader designed to cater to vehicles ranging from class 1 (0-6,000 lbs) to class 9 (33,000 lbs). It boasts the capability to read and erase heavy-duty engine Diagnostic Trouble Codes (DTCs), supporting J1939 and J1708 heavy-duty protocols. Additionally, it allows users to graph, record, and playback live data, as well as display live and freeze frame data.

Equipped with support for all 10 OBDII test modes, the AL529HD features one-click I/M readiness and emissions testing, simplifying diagnostics. Enhanced Mode 6 diagnostics provide further insight into vehicle performance.

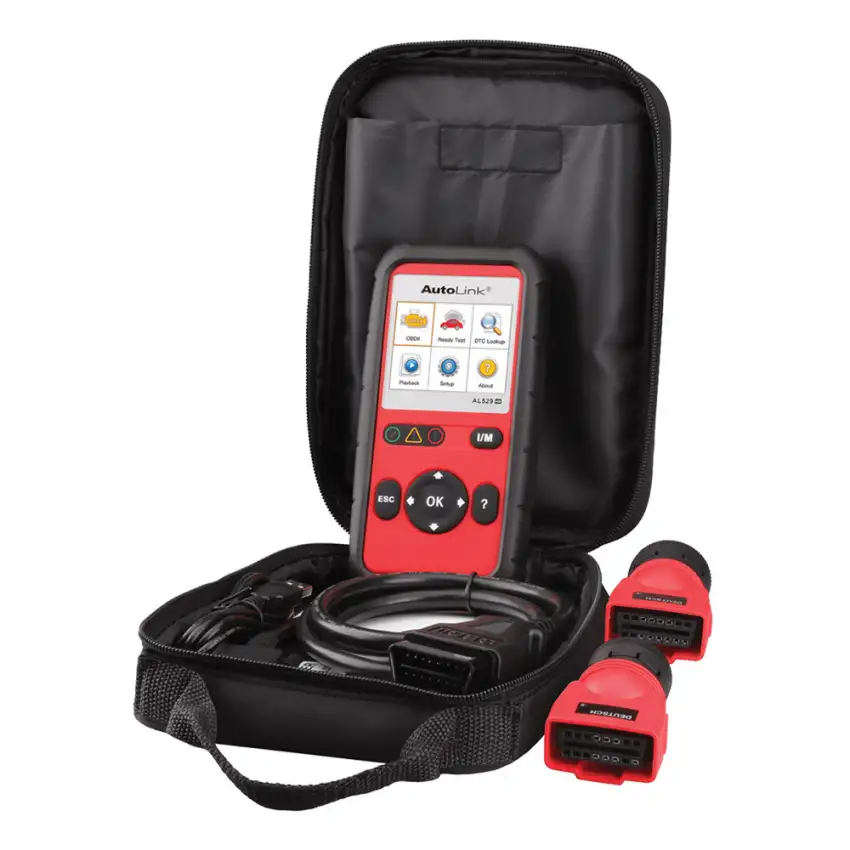

Keeping the scanner up-to-date is easy with PC updates, ensuring compatibility with the latest protocols and software versions. The AL529HD comes complete with a color screen, Deutsch 9-pin and Deutsch 6-pin connectors, and an OBDII cable for added convenience.

With a 1-year tool warranty and free lifetime software updates included with purchase, users can trust in the durability and reliability of the AL529HD for their heavy-duty diagnostic needs.

Description:

  • Read/ Erase Heavy Duty Engine DTCs
  • Class 1-9 Commercial Vehicles
  • Includes Deutsch 9-Pin & 6-Pin Adapters
  • Supports J1939 & J1708 HD Protocols
  • One-Touch I/M Readiness/ LED Indicator
  • FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
  • Support All 10 OBDII Test Modes
  • Enhanced Mode 6 Diagnostics
  • Graph, Record & Playback Live Data
  • Display Live & Freeze Frame Data
  • Covers Domestic, Asian & European Vehicle Manufacturers (1996+)
  • Includes OBDII Cable
  • Easy-To-Use Navigation /Software Updates via PC
  • Full Color Display 320x240
  • Save Files with Micro SD Card (not included)

Downloads:

AutoLINK AL529HD User Manual
AutoLINK AL529HD Quick Start Guide
