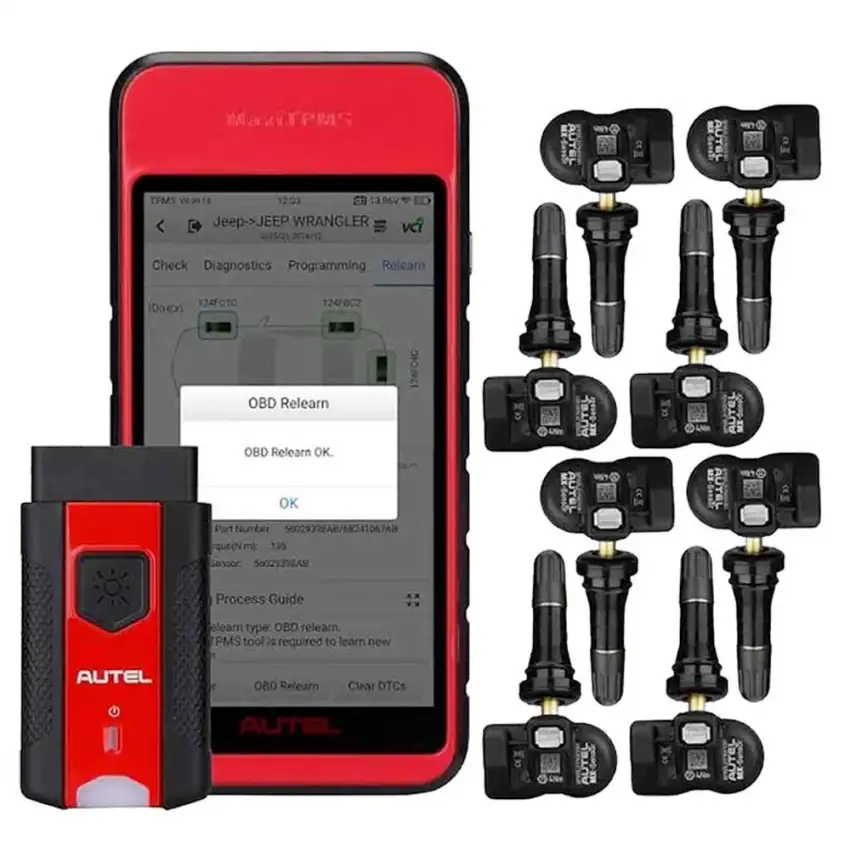

Autel MaxiTPMS ITS600K8 kit with the ITS600 tablet and eight 1-Sensors
Recommended Use | Indoor |
Operating System | Android 9.0 |
Processor | Quad-core processor (1.5 GHz) |
Memory | 1 GB RAM DDR4 & 64GB ROM |
Display | 5.5-inch LCD capacitive touchscreen with 1280×720 resolution |
Connectivity | Wi-Fi, USB 2.0, Type C, BT |
Sensors | Light sensor for brightness auto adjust |
Audio input/output | Input: N/A, Output: Beep |
Power and Battery | 3.8 V/5000 mAh lithium-polymer battery, Charges via 5 V AC/DC power supply |
Battery Charging Input | 5 V/2 A |
Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
Operating Temp. | -10 to 45ºC (14 to 113ºF) |
Storage Temp. | -20 to 60ºC (-4 to 140ºF) |
Dimensions (W x H x D) | 183.0 mm (7.2″) x 89.0 mm (3.5″) x 22.0 mm (0.87″) |
Net Weight | 368 g (0.8 lb.) |
Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
Condition | New |
![Autel](/thumbnail/crop/175/125/manufacturers-logo/autel-logo.png)
The MaxiTPMS ITS600K8 kit comprises the ITS600 tablet along with eight 1-Sensors, providing a comprehensive solution for TPMS diagnostics and service. The MaxiITS600 tablet is a wireless Android-based device with a user-friendly touchscreen interface. Sporting a vibrant 5.5-inch color display, it comes equipped with a Bluetooth vehicle communication interface (VCI).
Designed to cater to U.S, Asian, and European TPMS-equipped vehicles, the ITS600 tablet offers an array of features. These include an enhanced TPMS status screen, VINscan for swift vehicle identification, four MX-Sensor programming options, OBDII relearn functionality, and on-screen relearn instructions tailored for various vehicles.
Capable of activating, reading, and relearning all known sensors, the ITS600 tablet also performs comprehensive vehicle systems diagnostics and supports four common maintenance services. Moreover, it is compatible with Autel's TBE200 Tire Tread & Brake Disc Wear Analysis tool (sold separately).
The ITS600 tablet includes one year of free TPMS software updates and is backed by a one-year limited warranty, ensuring ongoing support and reliability for users.
Description:
MaxiTPMS ITS600K8 Kit
- Includes ITS600 TPMS Service and Diagnostic Tablet with (8) 1-Sensors
- Wireless Touchscreen Android-based Tablet Tool
- Activates, Reads and Relearns All Known Sensors
- Four MX-Sensor Program Modes; Batch Program Up to 20 MX-Sensors
- 5.5 Inch Color Display; Android 9.0 OS
- Includes Wireless Bluetooth Vehicle Communication Interface (VCI)
- Enhanced, At-a-Glance Diagnostics Status Screen
- Rapid VIN Acquisition Via Optical VINscan Function
- Program MX-Sensors to replace 99% of OE Sensors
- Read/Erase All System Codes and Perform OLS, BMS, SAS and EPB
