Autel MaxiTPMS TS508 Handheld TPMS Service Scan Tool

Autel MaxiTPMS TS508 Handheld TPMS Service Scan Tool-0 thumb
MaxiTPMS TS508 Handheld TPMS Service Scan Tool From AUTEL thumb
High Quality NEW OEM Autel MaxiTPMS TS508 Handheld TPMS Service Scan Tool thumb
TPMS-AUT-TS508

Autel MaxiTPMS TS508 Handheld TPMS Service Scan Tool

$249.95Was $270.00 (Save 7.5%)
Found a better price!If you find better price, we'll match it!

DisplayTFT color display (320 x 240 dpi)
Power3.7 V Li-polymer battery; 3200 mAh
Operating Temp.0°C to 50°C (32°F to 122°F)
Storage Temp.-20°C to 70°C (-4°F to 158°F)
Dimensions215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
Weight0.39 kg (0.86 lb.)
ConnectivityMini USB 2.0 x 1
Warranty1 year
Software UpdateFree
ConditionNew
Report incorrect product information

The MaxiTPMS® TS508 is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn.
With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TS508K, the starting TPMS kit with one tool and 8 sensors, can be your right choice to experience AUTEL TPMS lines.

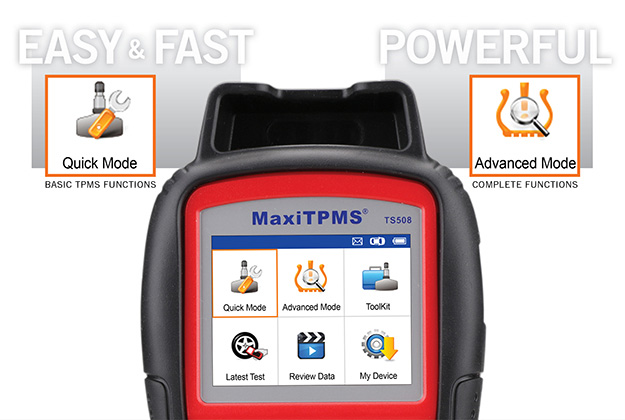

TWO TPMS SERVICE MODES
The TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.

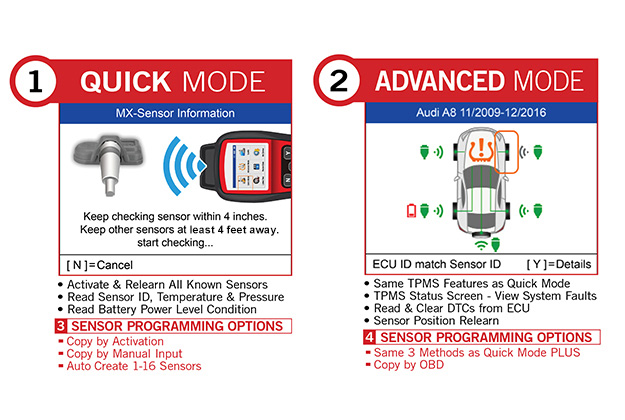

  QUICK MODE / ADVANCED MODE COMPARISON
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;

TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.

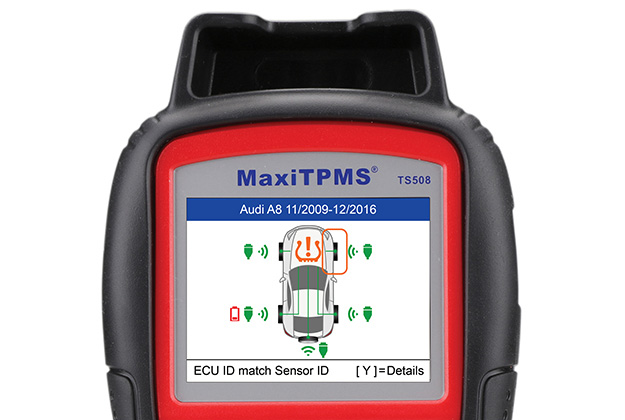

EXCLUSIVE TPMS STATUS SCREEN
  1. Read ECU sensor ID;
  2. Check sensor ID and ECU ID matching condition;
  3. Read DTCs from ECU and erase DTCs;
  4. View DTCs detail description;

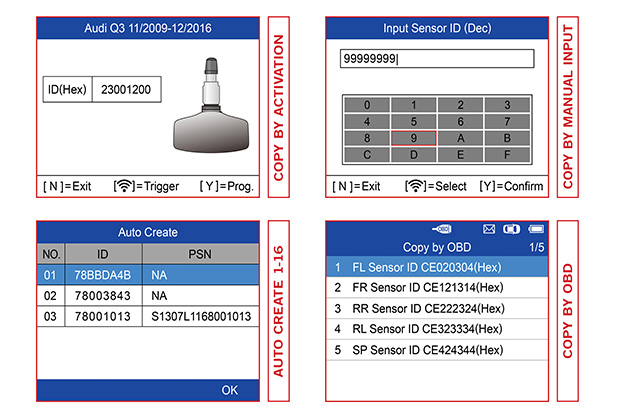

  FOUR MX-SENSOR PROGRAMMING OPTIONS
  1. Copy By Activation;
  2. Copy By Manual Input;
  3. Auto Create 1-16;
  4. Copy By OBD;

Features:

  • Easy-to-use Handheld TPMS Service tool
  • Activate TPMS sensors
  • Read sensor data
  • TPMS diagnose, one step for complete TPMS health check
  • Read/clear TPMS DTCs; on-screen DTC description
  • Scan TPMS sensor ID and copy ID into MX-Sensor
  • Manual input OE ID into MX-sensor
  • Program MX-Sensor by auto-creating sensor ID
  • Read Sensor ID by OBD and copy ID into MX-Sensor
  • Relearn by OBD function
  • Relearn procedure guide on the tool
  • Check Key FOB
  • Tire Type/Pressure selection
  • Free Life of Tool Software Updates Ensures Newer Vehicles are Covered
  • Free Technical Support

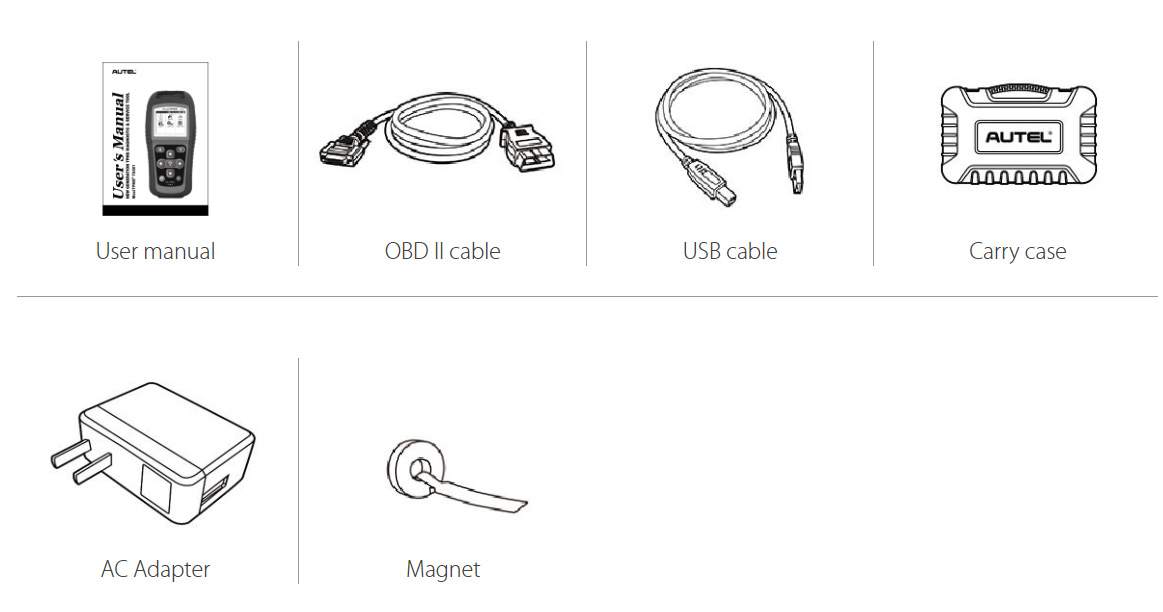

Includes:

  • MaxiTPMS TS508 - Main unit
  • Magnet
  • Carrying Case
  • OBD II Cable
  • USB Cable
  • AC Adapter
  • User Manual

Accessories:

Sell Sheet
User Manual
TS508 Vehicle Function List
