Yanhua ACDP Module #29 Audi Gen5 BCM2 IMMO Module for All Keys Lost

Yanhua ACDP Module #29 AUDI Gen5 BCM2 IMMO Module

Highlights:

• Support adding key and all-key-lost for 2013-2018 Audi A4/A5/Q5 and other models, BCM2 types: 0711,0650,0641 etc.
• Support adding key for 2013-2019 Audi A6/A7/A8 and other models. The BCM2 IMMO data can be read when all keys are lost but the sync data needs to be obtained from a third party. BCM2 types: 0842,0825,0827 etc.

Module Function:

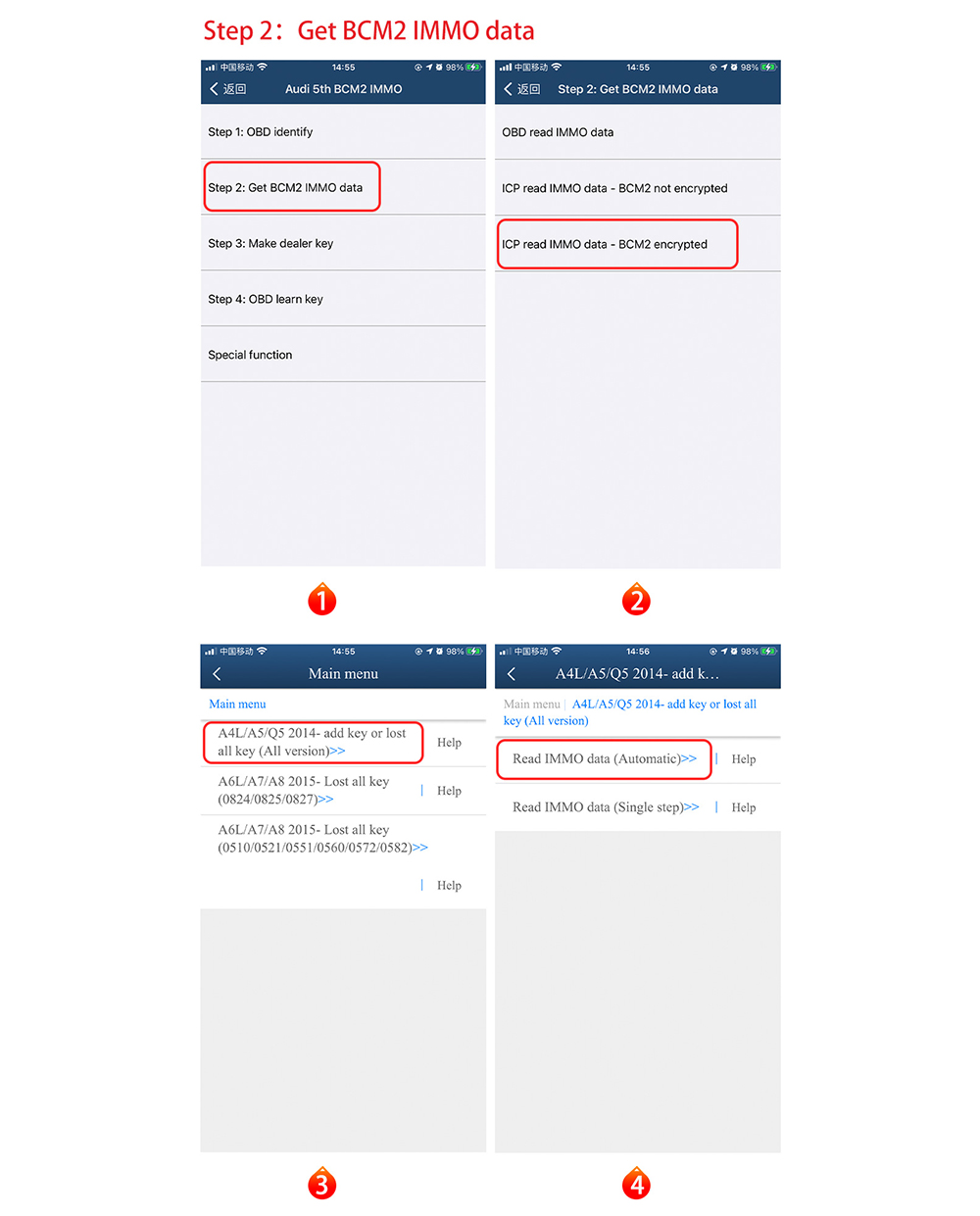

1. Supports Audi Gen5 unencrypted version and partial encrypted version BCM2 to read immo data by OBD
2. Supports Audi Gen5 encrypted version BCM2 to read immo data by ICP
3. Supports chip models: D70F3379, D70F3380, D70F3381, D70F3382, D70F3634, D70F3635

Module Features:

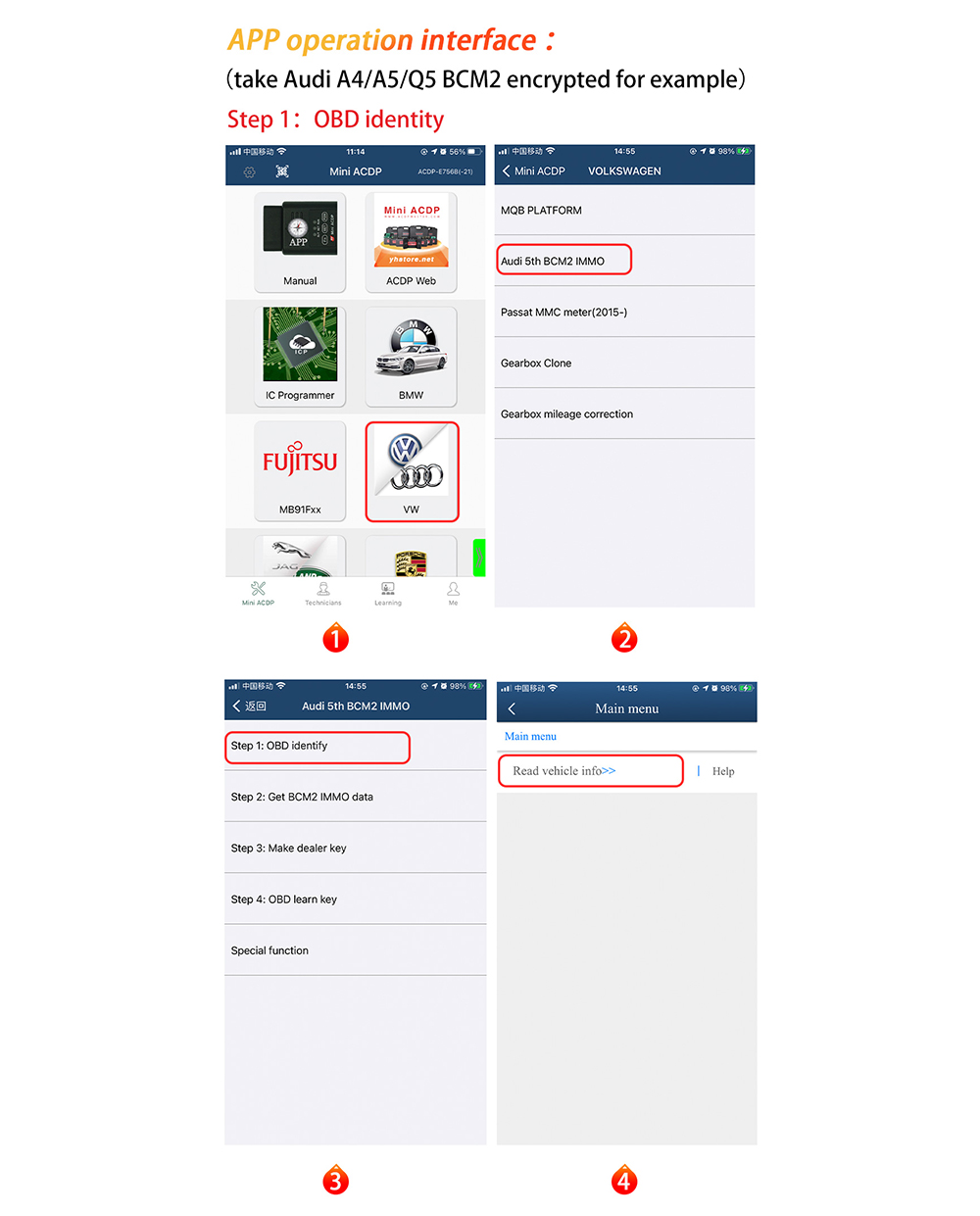

1. OBD identify to know, whether the vehicle supports to read IMMO data via OBD, whether the BCM2 type is encrypted version, and whether the BCM2 module needs to be removed to read IMMO data.

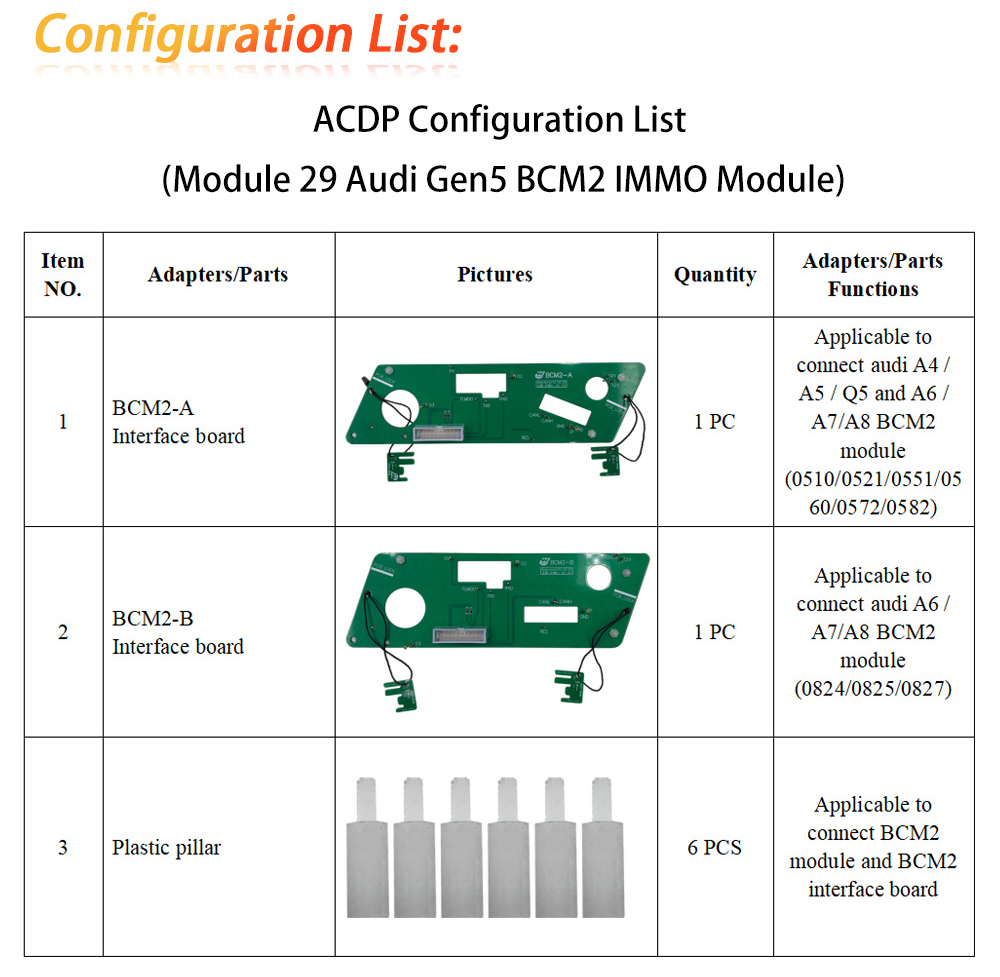

2. Special interface board to read BCM2 IMMO data, pin intelligent detection, fata read and write safe and reliable.
