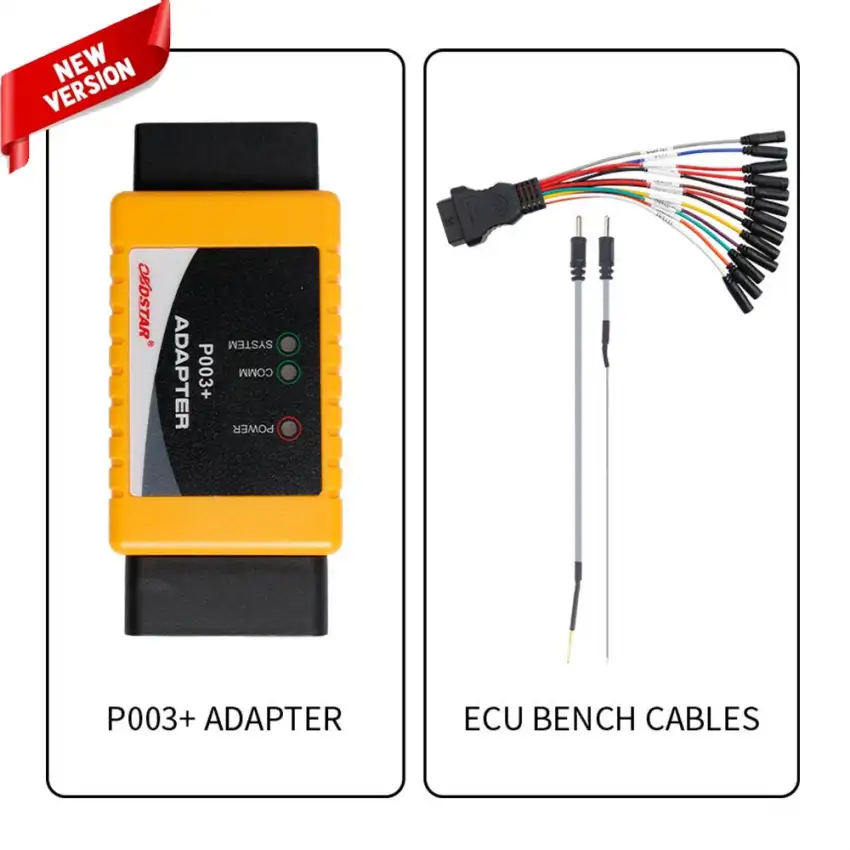

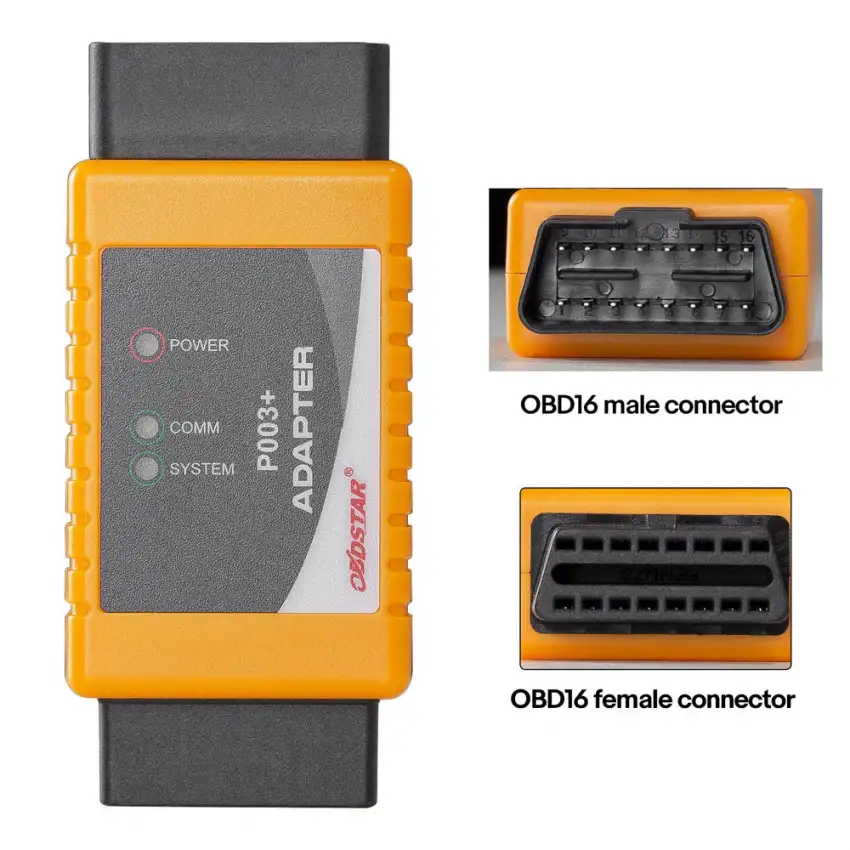

OBDSTAR P003+ Adapter with ECU Bench Cables for OBDSTAR X300 DP/ X300 DP PLUS/ Key Master DP/ X300 PRO4/ D800 (New Version)

The OBDSTAR P003+ adapter is compatible with P003 and extends support to certain models requiring a higher frequency clock during the decryption process. These models include ME9.0, MED9.1, MED9.61, ME9.61, MED9.5.10, EDC16C39, EDC16CP35, and EDC16C8. Additionally, it supports P002 functions.

This adapter, along with ECU bench cables, is specifically designed for reading BOSCH ECU data, CS, Pincode, and other relevant information. It covers a range of vehicle brands including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen, etc.

It works seamlessly with OBDSTAR X300 DP, X300 DP PLUS, DC706, Key Master DP, X300 PRO4, and D800, enhancing their capabilities for ECU data reading and related functions.

OBDSTAR P003 Kit Functions

• Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
• Bosch MED17.4.4 reading eeprom, PinCodeP003 KIT
• Bosch EDC17C60 reading eeprom, PinCodeP003 KIT
• Bosch MD1CS018 reading eeprom, PinCodeP003 KIT
• Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
• Bosch ME17XX reading & writing eeprom, flash
• T87A, 6HP reading & writing TCM eeprom, flash

OBDSTAR P003 Kit Supported ECU List:

Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

Continental PCR2.1(TC1796):

2010-2014 Audi A1 (8X) 1.6L Diesel
2009-2012 Audi A3 (8P) 1.6L Diesel
2009-2013 Seat Altea 1.6L Diesel
2010-2016 Seat Ibiza IV (6J) 1.6L Diesel
2010-2012 Seat Leon II 1.6L Diesel
2014 Seat Toledo (KG) 1.6L Diesel
2010-2013 Skoda Octavia II (1Z) 1.6L Diesel
2010-2013 Skoda Fabia II (5J) 1.6L Diesel
2010-2011 Skoda Roomster (5J) 1.6L Diesel
2013-2014 Skoda Rapid (NH) 1.6L Diesel
2011-2013 Skoda Superb (3T) 1.6L Diesel
2012/2015 Skoda Yeti (5L) 1.6L Diesel
2010-2015 VW Caddy (2K) 1.6L Diesel
2009-2013 VW Golf VI 1.6L Diesel
2010-2013 VW Golf Plus 1.6L Diesel
2011-2014 VW New Beetle (9C) 1.6L Diesel
2011 VW Passat (B7) 1.6L Diesel
2009-2014 VW Polo V 1.6L Diesel
2010-2015 VW Touran (1T) 1.6L Diesel

Bosch MED17.4.4(TC1793):

Citroen C3 Mk2
Citroen C4 Gran Picasso
Citroen C4 MK2
Citroen C5 (RD/TD)
Citroen C6
DS DS3
DS DS5
DS DS6
Peugeot 2008
Peugeot 208
Peugeot 3008 (P84)
Peugeot 3008 (T84)
Peugeot 308 (T9)
Peugeot 4008
Peugeot 408
Peugeot 508

Bosch EDC17C60(TC1793):

Citroen Berlingo
Citroen C-Elysee
Citroen C3 Aircross
Citroen C3 MK2
Citroen C3 Picasso
Citroen C4 Cactus
Citroen C4 MK2
Citroen C4 Picasso
Citroen Jumpy
Citroen Spacetourer
DS DS3
DS DS4
DS DS5
Peugeot 2008
Peugeot 208
Peugeot 3008 (P84)
Peugeot 308 (T9)
Peugeot 5008 (T87-P87)
Peugeot 508
Peugeot Expert
Peugeot Ranch/Partner
Peugeot Traveller
Opel/Saturn/Vauxhall Combo E
Opel/Saturn/Vauxhall Crossland X
Opel/Saturn/Vauxhall Grandland X
ToyotaProace

Bosch MD1CS018:

Mahindra BS-6

Bosch MED17XX/EDC17XX:

EDC17U01(TC1766)
EDC17C46(TC1767)
EDC17C54(TC1797)
EDC17C64(TC1797)
EDC17CP44(TC1797)
EDC17CP44 MS(TC1797)
MED17.5(TC1766)
MED17.5.1(TC1766)
MED17.5.20(TC1766)
MED17.5.5(TC1766)
MED17.5.5 HW2(TC1766)
MED17.5.2(TC1767)
MED17.5.5(TC1767)
MED17.5.5 HW2(TC1767)
MED17.5.21(TC1782)
MED17.5.25(TC1782)
MED17.1.1(TC1797)
MED17.1.1 MS(TC1797)
MED17.1.6(TC1797)
VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

Bosch ME17XX:

ME17.5.6(TC1767)
ME17.5.20(TC1767)
ME17.1.1(TC1797)
ME17.1.6(TC1797)
VW/Audi/Skoda/Seat, Bentley...

Download:

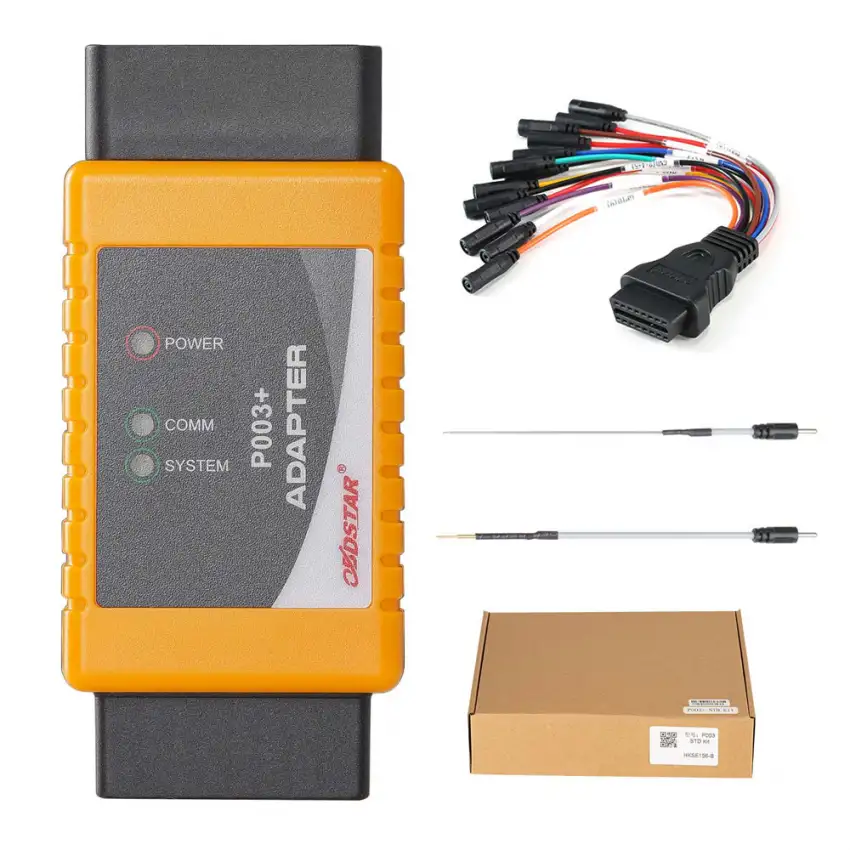

Configuration and Package List
