OBDSTAR IScan Evinrude Marine Diagnostics Tool

The ISCAN EVINRUDE (MARINE) is a portable tablet designed with high performance and an industrial-grade appearance, specifically for EVINRUDE. This next-generation intelligent marine diagnostic tool is tailored to meet the needs of customers. Powered by an RK3128 quad-core processor and featuring a 5.0-inch capacitive touchscreen, it delivers a professional and efficient diagnostic experience.

Functions:

• Runs on Android 5.1.1 operating system.
• Simple and intuitive menu guidance makes equipment operation easy to learn.
• Offers full diagnostic capabilities, including code reading, clearing, data streaming, action testing, settings, and coding.
• Quick and convenient menu selection for smoother operation.
• Records and replays real-time data to quickly and accurately diagnose sensor and component faults.
• Wi-Fi connectivity enables easy internet access and one-click software upgrades.
• One-click remote assistance from OBDSTAR technical support.

Advanced Functions:

• The OBDSTAR mobile app integrates features such as diagnostic socket location, flash code lookup, technical bulletins, service lamp reset, basic parameters, and more, working with ISCAN for precise and efficient marine diagnostics.
• Multiple data flow display modes, including text, waveform, and instrument diagrams, make fault analysis simple and effective.
• Supports special functions such as Device Configuration, Maintenance Notification Settings, and more.

Diagnostic Support Series:

Supports 40 EFI 4-Stroke (1999-2006), 50 EFI 4-Stroke (1999-2006), 70 EFI 4-Stroke (1999-2006), and G2 series (2006 and later) outboard models.

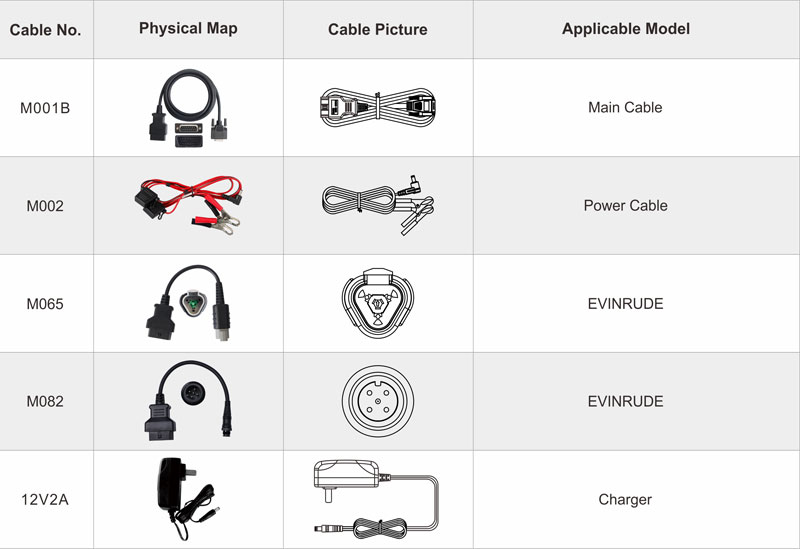

Accessories:

Downoads:
ISCAN EVINRUDE(MARINE) COVERAGE 20240830
ISCAN SERIES (MARINE) User Manual

Function Display-(From OBDSTAR Mobile App)

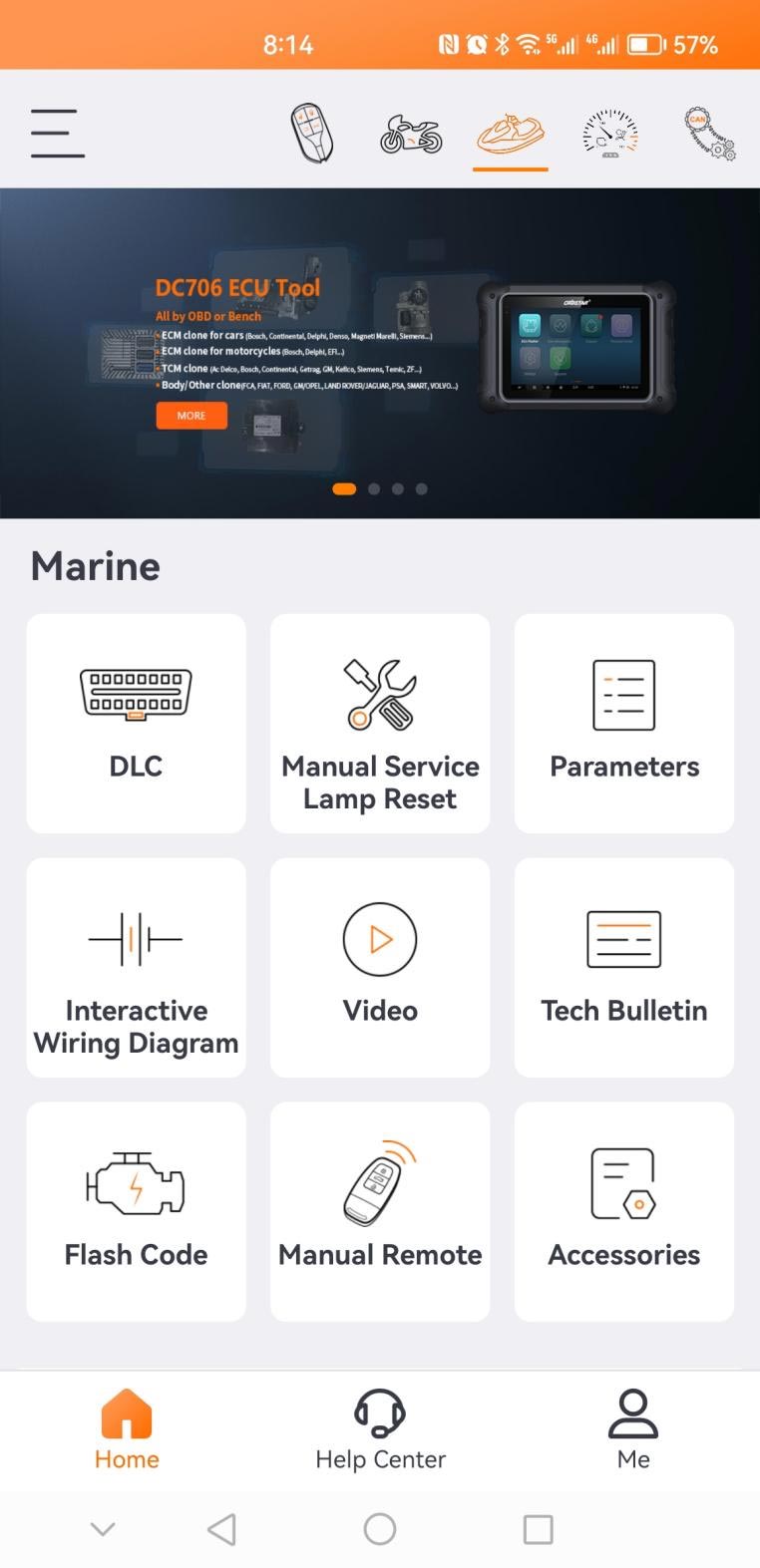

1) Main Page

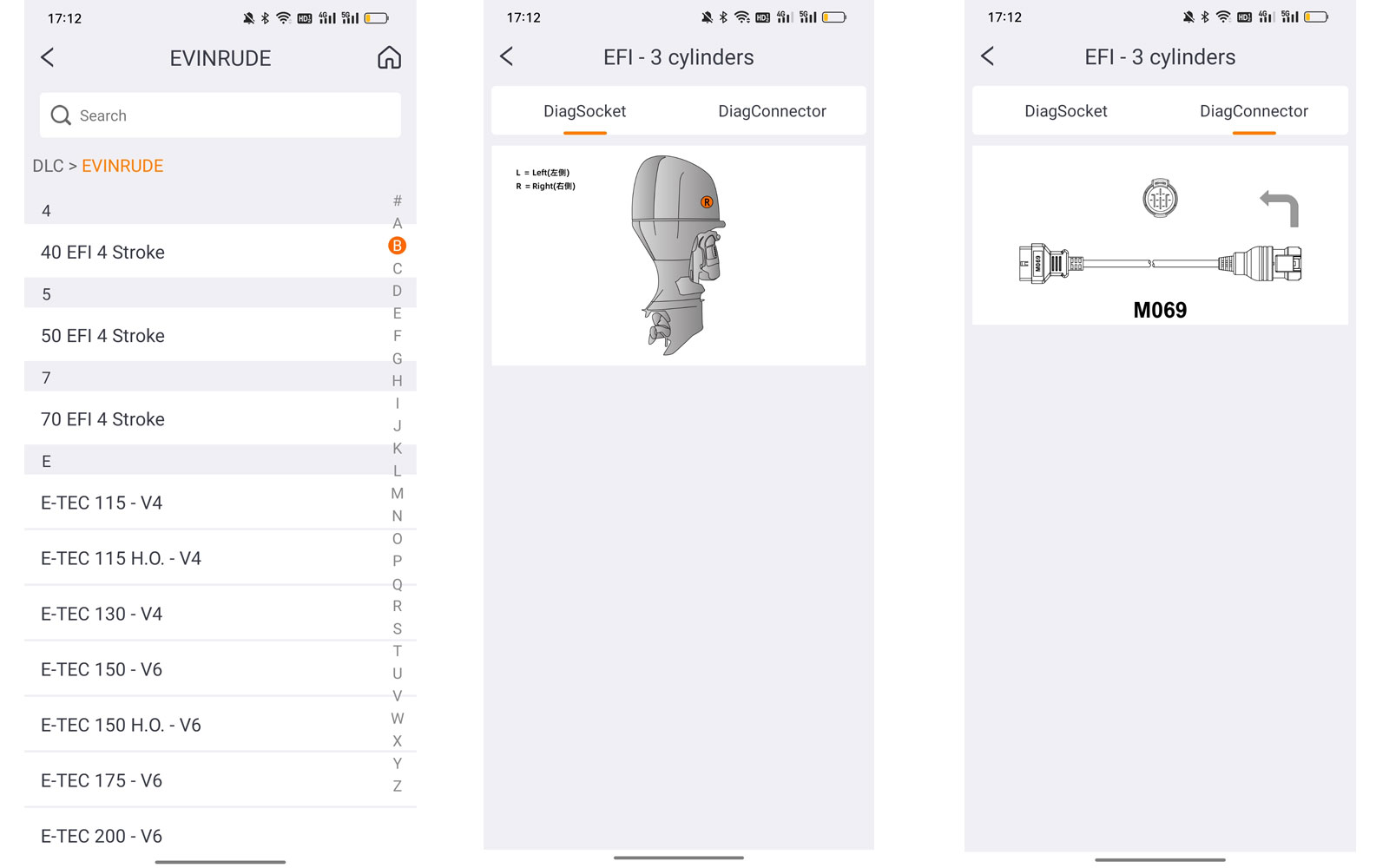

2) Diag Socket/Diag Connector Location

Function Display-(From ISCAN)

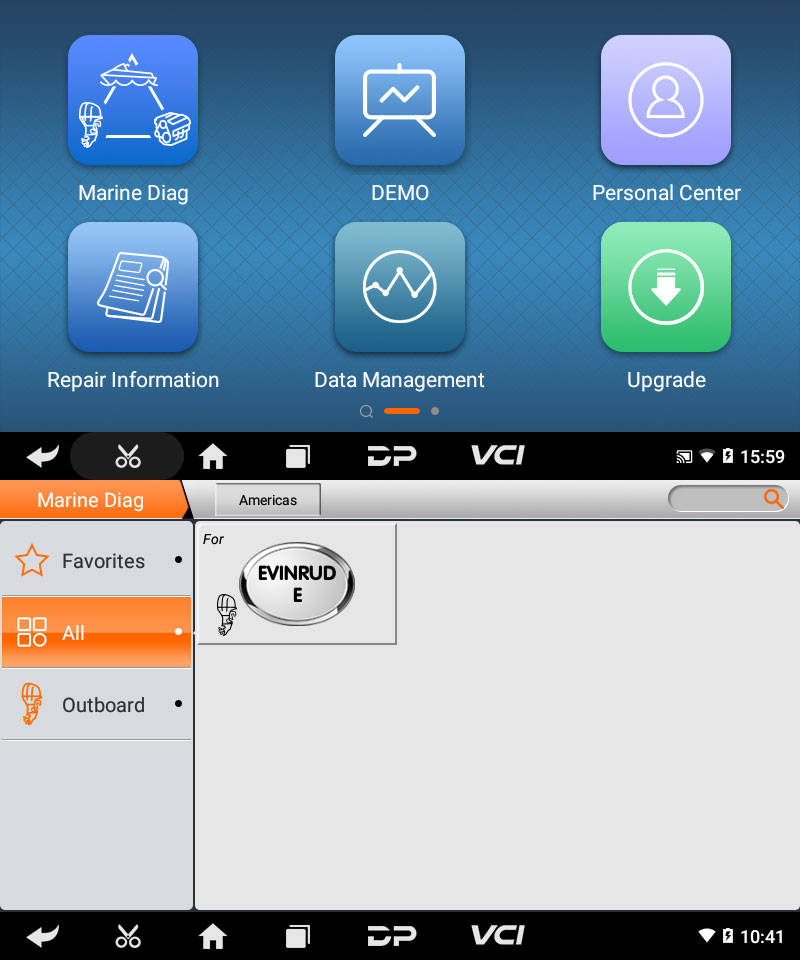

1) Main Page/Brand Supported

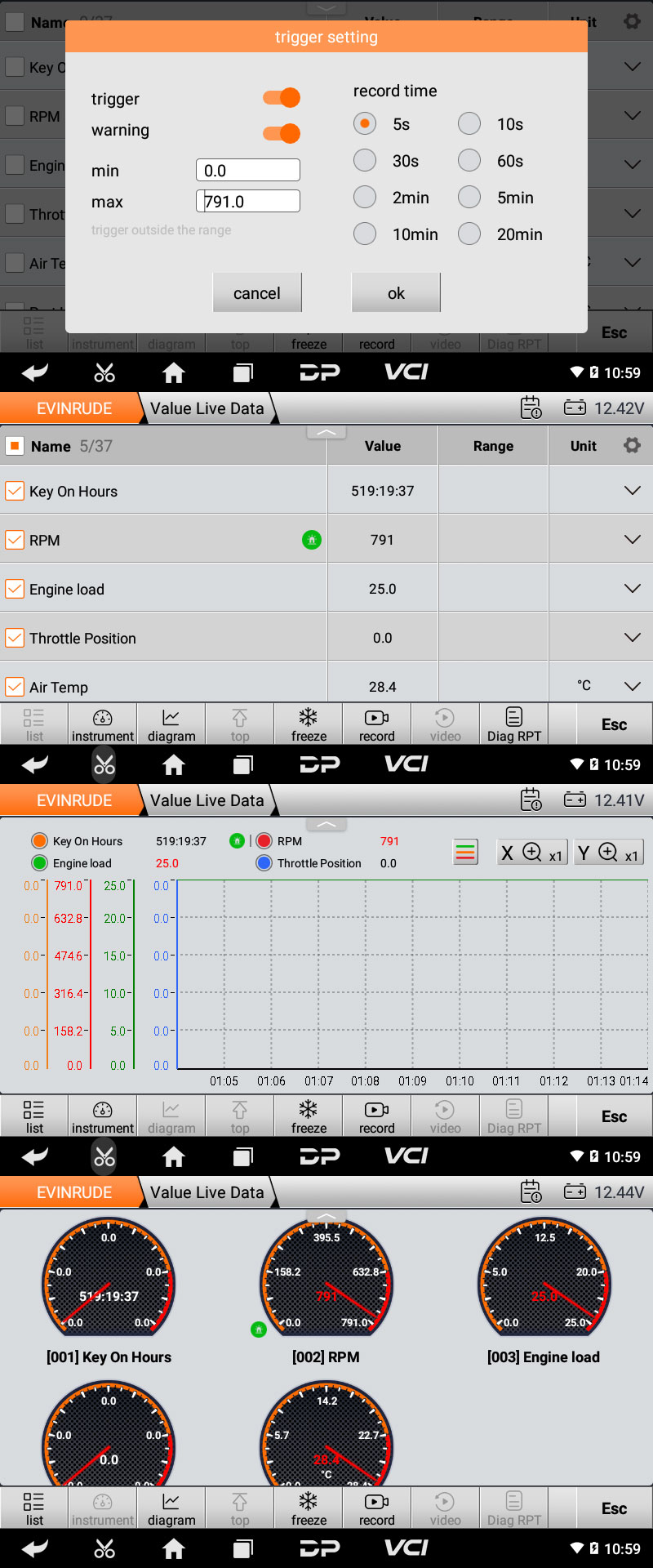

2) Data Flow Text/Waveform Diagram/Instrument Diagram

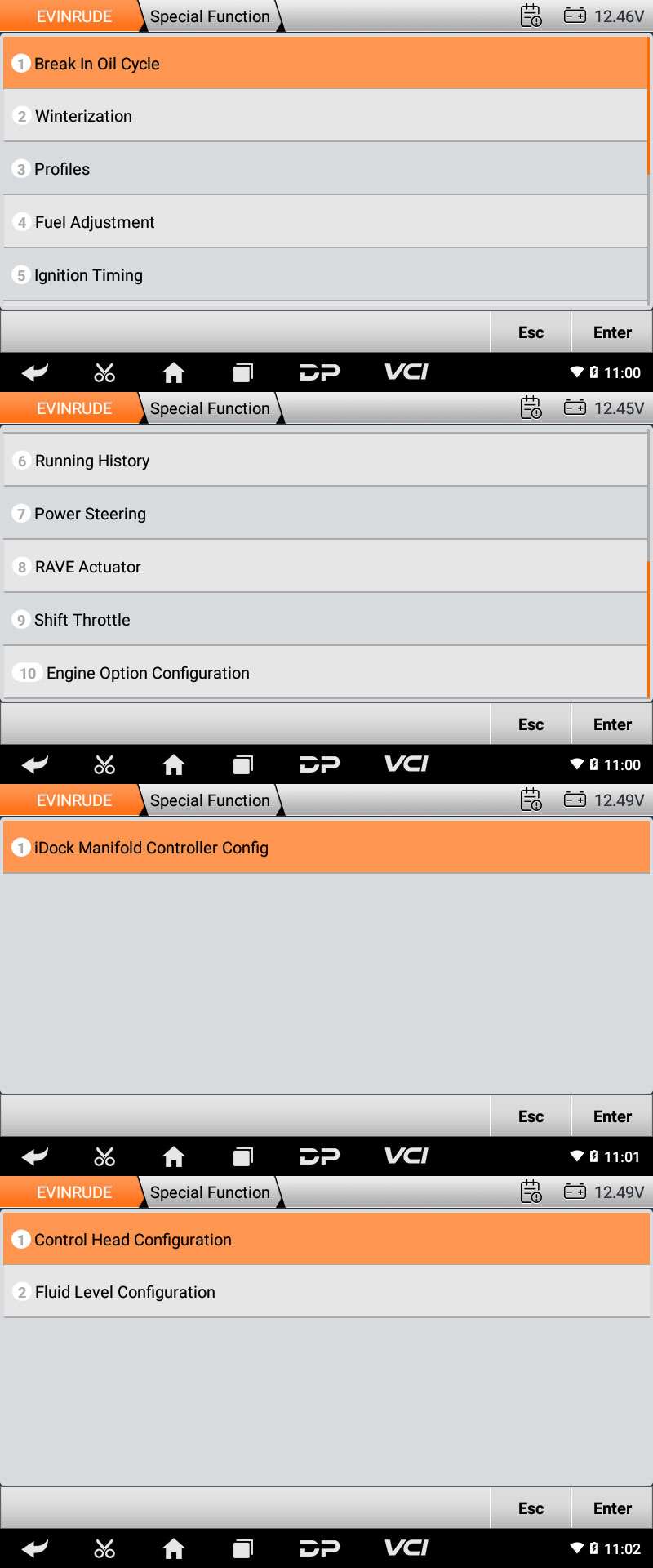

3) Special Functions
