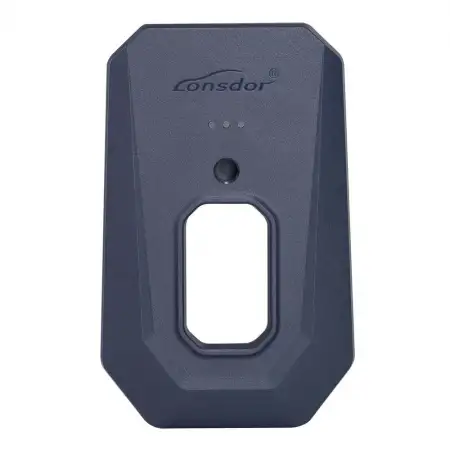

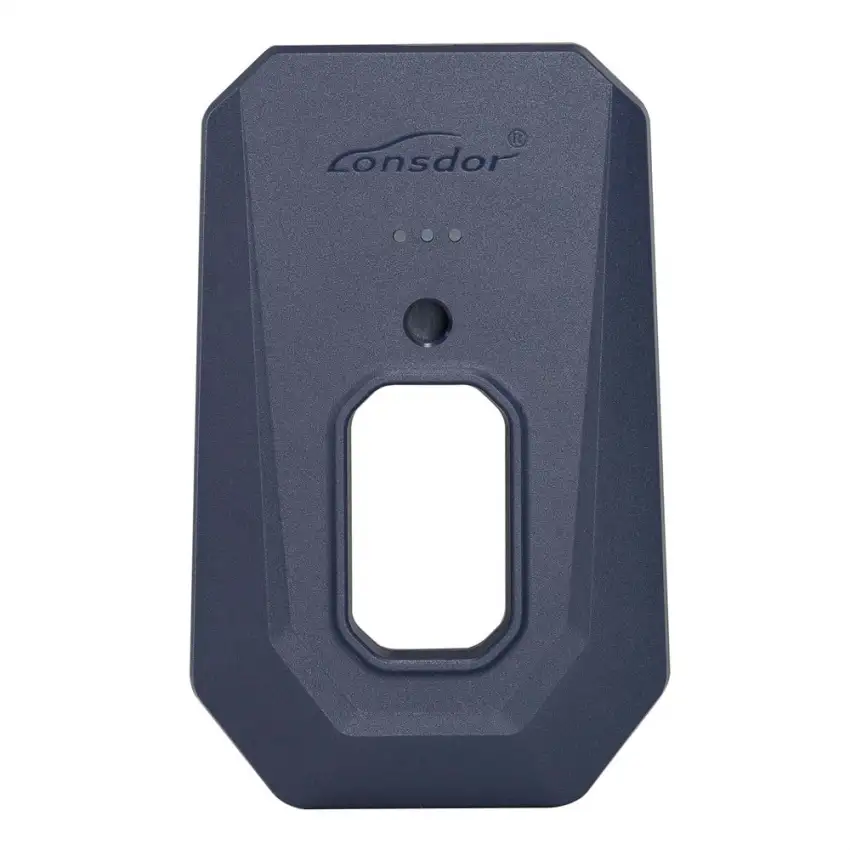

Lonsdor KW100 Bluetooth Smart Key Remote Programmer Compatible with LT20 Remotes

The Lonsdor KW100 is a newly enhanced, versatile hand-held smart device designed for a variety of key management tasks. It can access control keys, simulate and generate chips, create remote keys, detect remote frequencies, and unlock Toyota smart keys, among other functions. Once the KW100 identifies the necessary chip type, frequency, and chip information for a key, it enables quick generation, even in cases where all keys are lost, greatly enhancing the convenience of using LT20.

Compatible with LT20 Remotes, specifically models LT20-01 to LT20-08.

Lonsdor KW100 Functions:

• Generate smart key
• Detect remote frequency
• Modify frequency
• Modify button type
• Read button function
• Upgrade key
• Get LT20 version information
• Modify remote count value
• Unlock key
• Frequency detection and sequencing
• Include chip information, identifying the required chip type for the key

Instructions for Modifying Remote Count Value:

Purpose: This function is a backup option to use when the remote does not work after the smart key generation is complete. If the remote is functioning properly, click "Cancel" to exit.

1. Preparation:
   Push open the device's card slot to the right.
   Insert the key to be generated into the slot.
2. Procedure:
   The device will read the remote data.
   The current remote count value will be displayed (e.g., Current remote count value: 00000000).
   Enter the new remote count value.
   The device will modify the remote count value.
3. Verification:
   Test if the remote works properly.
   If the remote works, click "OK" to exit the program.
   If the remote does not work, click "Cancel" to continue modifying the value.

 Package Includes:

• 1pc x Lonsdor KW100
• 1pc x USB Cable
