GODIAG GT111 For VW Skoda Seat CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key Matching Test Platform Cable

Product Introduction: GODIAG GT111 for VW, Skoda, and Seat

The GODIAG GT111 is a CAN-Bus test platform cable designed for 3rd and 3.5th generation dashboards of VW, Skoda, Seat, and other compatible models. Equipped with a POGO PIN interface, it enables offline data reading and writing for advanced IMMO key matching and diagnostic functions.

Key Features:

• POGO PIN Interface: Facilitates precise offline data reading and writing.
• IMMO Key Synchronization: Supports key and instrument synchronization testing.
• Emergency Start Area Detection: Intelligent sensing of the emergency start area for the IMMO system.
• Offline Diagnostics: Enables offline IMMO instrument diagnosis.

Advanced Data Functions:

• IMMO data reading and writing
• Instrument mileage repair
• Key matching

Compatible Devices:

• HEX V2, VAGCOM VCDS 5053
• VAS5054A, VAS6154
• SUPER VAG K+CAN, Obdstar, Lonsdor
• AVDI, ZEDFULL, VVDI2
• Key Tool Plus, X300 DP Plus
• AUTEL and more

The GODIAG GT111 is the ideal solution for professionals seeking efficient and accurate key matching and diagnostic capabilities.

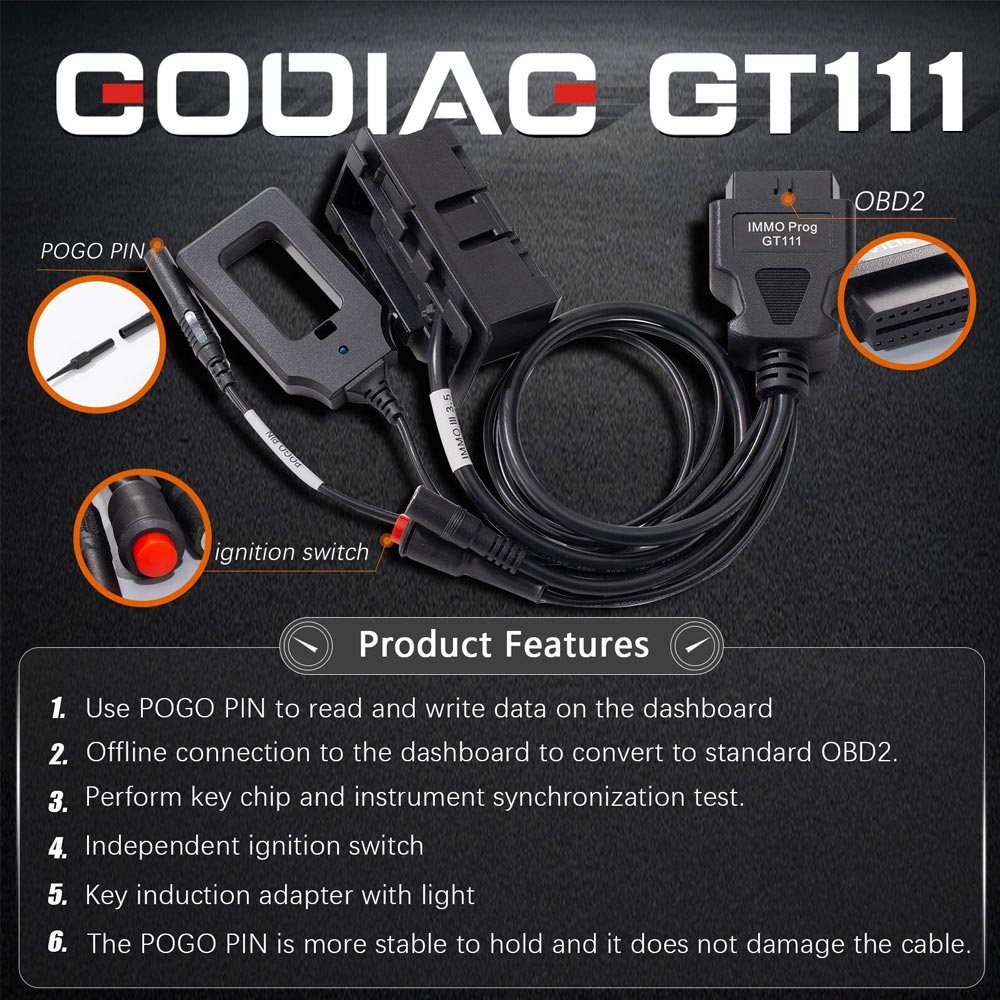

Product Features: GODIAG GT111

• POGO PIN Interface: Enables precise reading and writing of data to the dashboard.
• Offline Dashboard Connection: Converts dashboard connections to standard OBD2 for enhanced compatibility.
• Key Chip and Instrument Synchronization: Performs efficient synchronization tests between key chips and instruments.
• Independent Ignition Switch: Allows control over ignition testing independently.
• Key Induction Adapter with Light: Provides visual feedback for key detection and testing.

Intelligent IMMO System Emergency Start Area Detection

• Press the vehicle’s start switch and position the device’s key identifier near a specific area.
• If the key identifier light flashes or lights up, this indicates the vehicle's emergency start sensing area.
• For smart keys with a dead battery, simply place the key in this sensing area to start the vehicle.
• Car IMMO Start and Key Chip Detection

Test Result Analysis:

• Light Flashes and Then Goes Out: IMMO chip and chip key are functioning correctly.
• Light Flashes Continuously: Indicates a mismatch between the chip key and the vehicle’s IMMO system; re-matching is
• needed.
• Light Does Not Flash: Suggests a fault in the vehicle’s IMMO system; further inspection is required.

Package Includes:

1 x GODIAG GT111 for VW, Skoda, and Seat CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key Matching Test Platform Cable with POGO PIN for data reading and writing.
