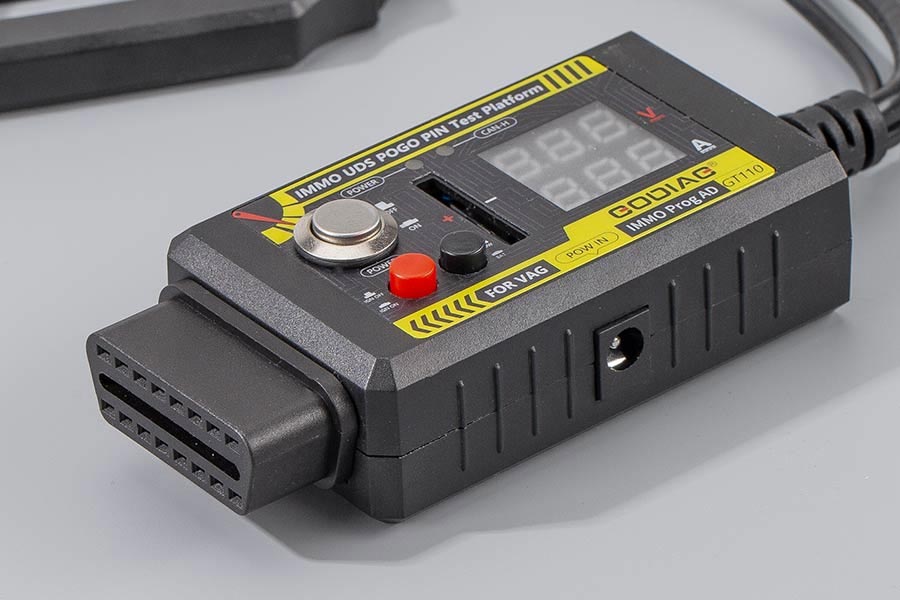

GODIAG GT110 For VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable

GODIAG GT110 for VW, Skoda, and Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable

The GODIAG GT110 is a specialized test platform cable designed for VW, Skoda, Seat, and other models with UDS 4th generation IMMO systems. It supports offline POGO PIN data reading and writing, making it ideal for dashboard key programming (including Boot Probe) across all UDS systems.

Key Features:

• POGO PIN Interface: Facilitates precise offline data reading and writing.
• Dashboard Key Programming: Supports all UDS systems for Volkswagen, Skoda, and Seat.
• Real-Time Voltage & Current Display: Monitors the working voltage and current.
• Power Control: Includes a power switch, simulated ignition switch, and a buzzer for ignition prompts.
• Advanced Communication & Detection:
  • CANH UDS communication indication.
  • CR2032 remote key battery detection.
  • Key and IMMO synchronization testing.
• Comprehensive IMMO Functions:
  • Intelligent emergency start area detection.
  • Offline IMMO combination instrument diagnosis.
  • IMMO data reading and writing.
  • Instrument mileage repair.
  • Key matching.

Compatible Devices:

• HEX V2, VAGCOM VCDS 5053
• VAS5054A, VAS6154
• SUPER VAG K+CAN, Obdstar, Lonsdor
• AVDI, ZEDFULL, VVDI2
• Key Tool Plus, X300 DP Plus
• SUPER VAG, AUTEL, and more

The GODIAG GT110 is a versatile and essential tool for professionals handling IMMO systems, offering a seamless solution for diagnostics, key programming, and advanced system functions.

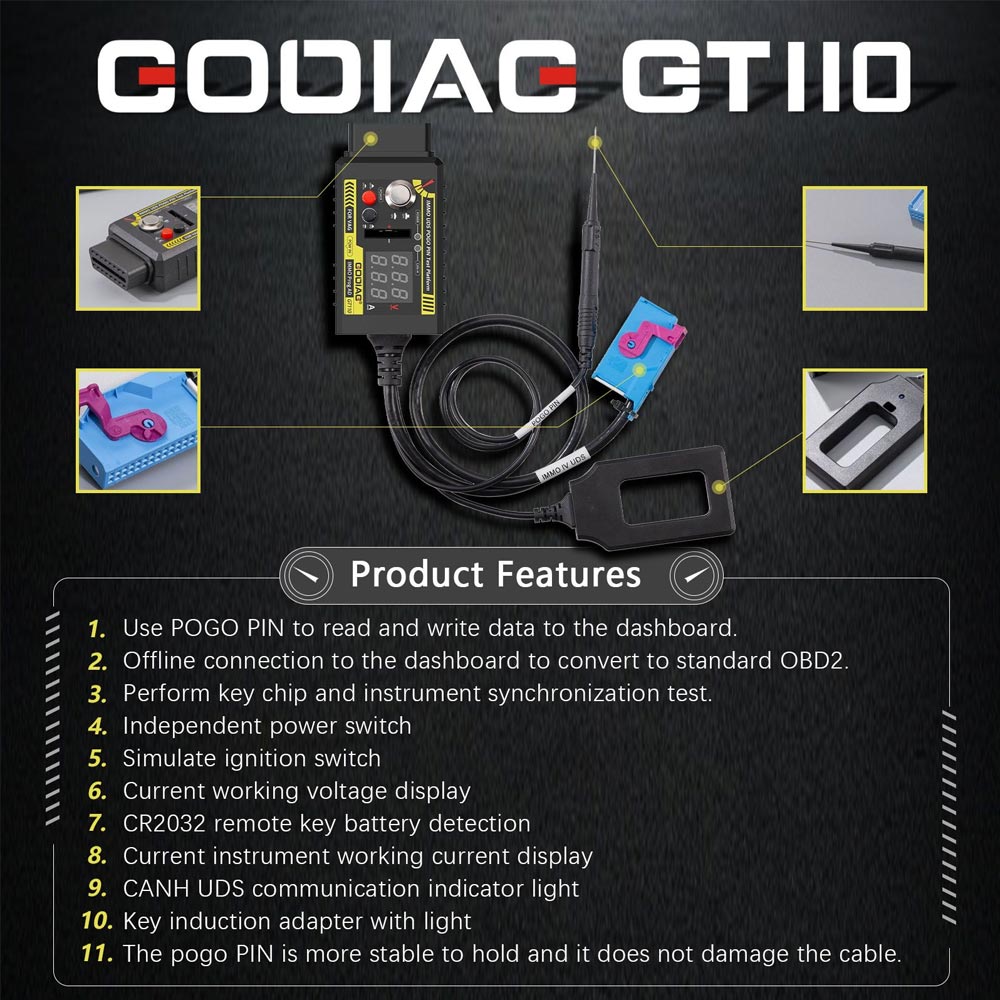

GODIAG GT110 Functions:

1. POGO PIN Interface: Enables precise reading and writing of dashboard data.
2. Offline Dashboard Connection: Converts dashboard connections to standard OBD2.
3. Key Chip and Instrument Synchronization: Facilitates efficient synchronization testing.
4. Independent Power Switch: Allows controlled power management.
5. Simulated Ignition Switch: Provides ignition testing capabilities.
6. Voltage Display: Shows the current working voltage in real-time.
7. CR2032 Key Battery Detection: Detects the status of remote key batteries.
8. Current Display: Monitors the working current of the instrument.
9. CANH UDS Communication Indicator: Displays the status of communication.
10. Key Induction Adapter with Light: Offers visual feedback for key detection.
11. Durable POGO PIN Design: Ensures stability, preventing damage to cables.

POGO Pin Usage Steps:

• Connect the power supply (ensure the power switch is off).
• Press the IGN ignition power (turn the IGN ignition switch on).
• Connect the instrument plug securely.

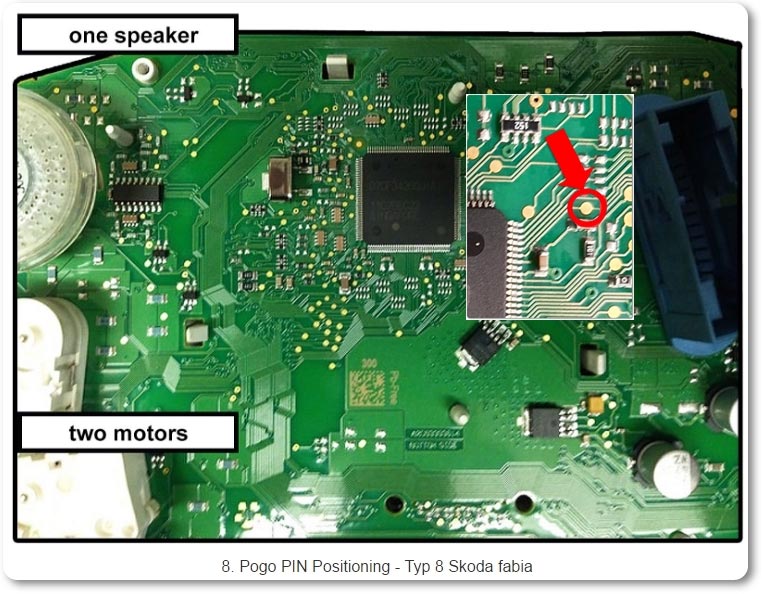

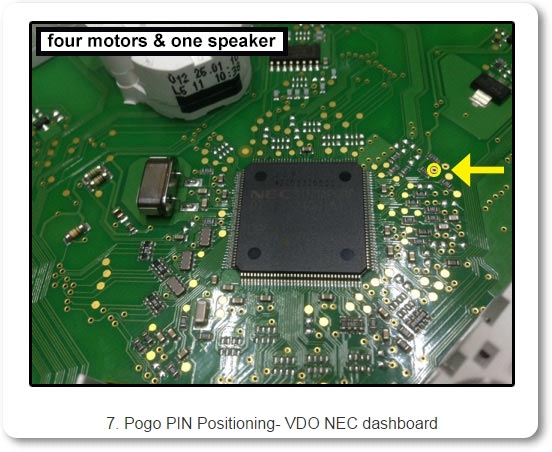

• Locate the POGO PIN connection point on the instrument and connect it using the probe.
• Turn on the power switch and wait 3-5 seconds.
• Confirm activation when the instrument ABS light flashes, indicating POGO PIN read/write mode is entered.

Intelligent IMMO System Emergency Start Area Induction Detection

To detect the intelligent IMMO system emergency start area, press the vehicle's start switch and position the device's key identifier near the suspected sensing area. If the key identifier light flashes or lights up, it confirms that the area is the vehicle's emergency start sensing zone. In cases where the smart key is out of power, simply place the dead key in this sensing area to start the vehicle.

Godiag GT110 vs Other Pogo Pin cables:

• Add simulated ignition switch
• Adds CAN H indicator light
• Pogo PIN does not break, more stable to hold
• Add voltage and current display
• Add button battery CR2032 testing
• Add key and instrument sync detection
• Add emergency starts sensing area recognition

Car IMMO Start and Start Key Chip Detection

Test Result Analysis:

1. The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

Package includes:

1pc x GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
