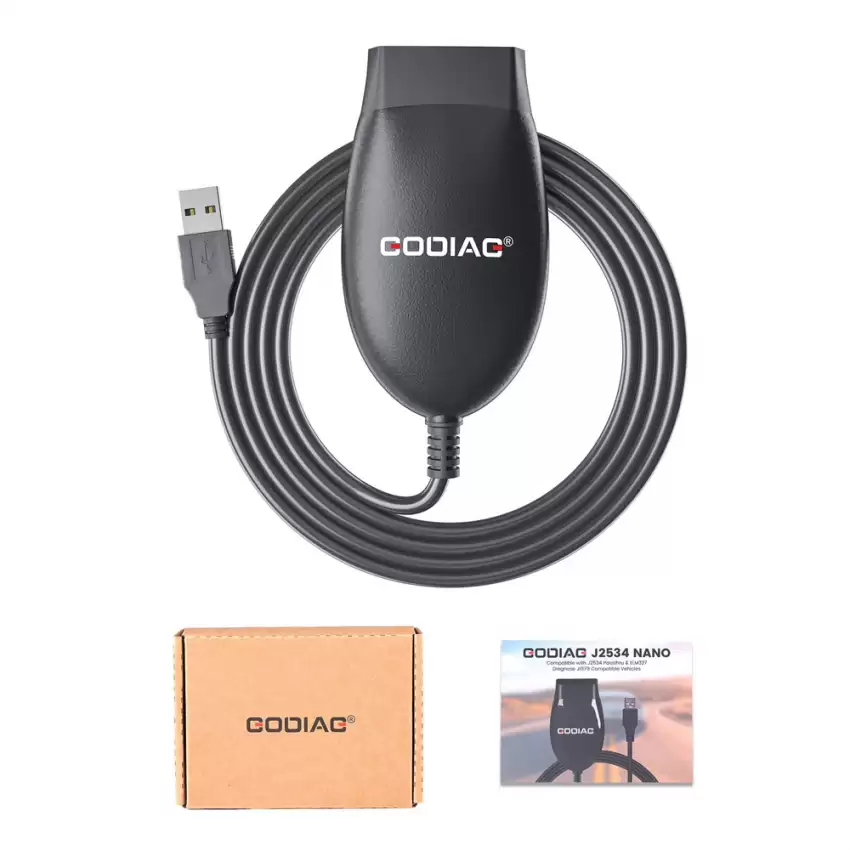

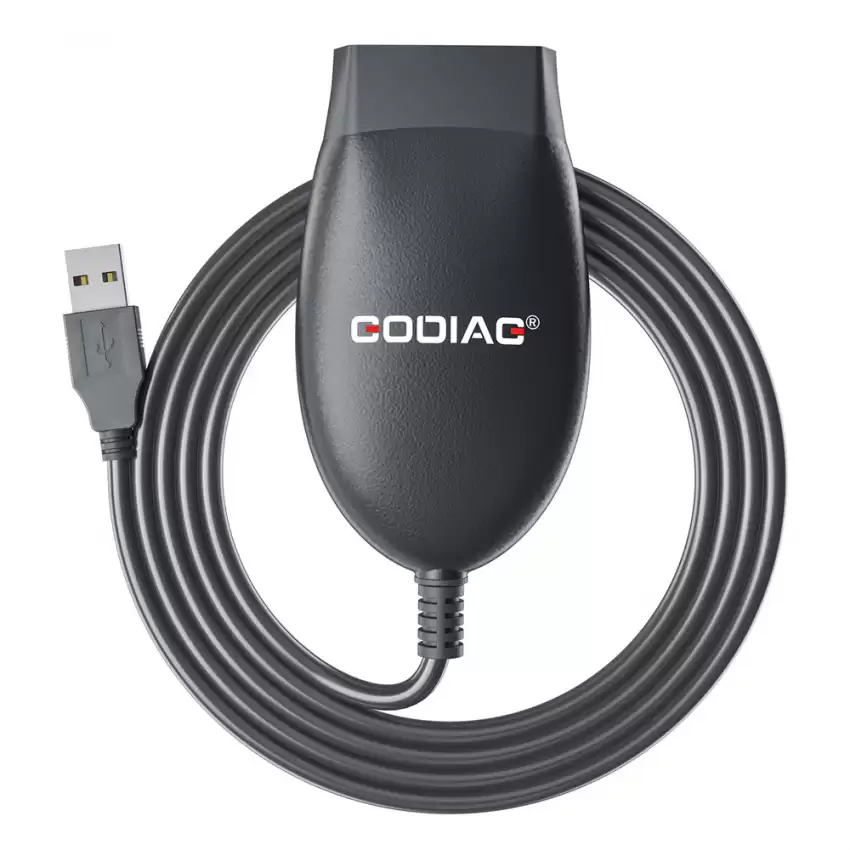

GODIAG GD101 J2534 Passthru Diagnostic Cable

GODIAG GD101 J2534 Passthru Diagnostic Cable-0 thumb
Passthru Diagnostic Cable GODIAG GD101 J2534 thumb
New High Quality GODIAG GD101 J2534 Passthru Diagnostic Cable thumb
AC-GOD-J2534

GODIAG GD101 J2534 Passthru Diagnostic Cable

$24.95
Found a better price!If you find better price, we'll match it!

Report incorrect product information

GODIAG GD101 J2534 Highlights:

  1. Support J2534 and ELM327 mode in one device. Switch mode automatically.
  2. Compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS 9.1.0.
  3. GODIAG GD101 J2534 has the similar functionality as Tactrix Openport 2.0.
  4. More speedup. Faster communication and reprogramming.
  5. More stability. Never let you down while reprogramming.
  6. Portable and convenient. Small package and easy to carry.
  7. Wok on Windows 8/10/11, 32/64bit
  8. Multi-Languages Available:
    ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
    Russia, Greece, Chinese

Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
Pcmflash: English, Russian

GODIAG GD101 J2534 Function List:

Software Brand Year NOTE
Toyota TIS Techstream Toyota, Lexus 1995-2022 Free download and activate software, update by link
Honda HDS 3.102 Honda Acura 1995-2022 Does not support non-#7 K-line, update by link
ODIS-S, ODIS -E VW Audi Skoda Seat 1995-2022 For J2534 VAG only. Don't support CAN FD protocol, Don’t support Ignition switch voltage detection
Forscan 2.3.48 Ford Mazda Lincoln 1996-2022 Cannot do 3, 11 medium speed CAN
Scanmaster V2.0   1996-2022 Free download and activate software
PCMFlash V1.2.0 67 modules 1996-2022 Yes, test by your side
J1979Tester   1996-2022 Free Honda immo code calculation
ELMConfig   1996-2022 Yes, test by your side
Volvo VI-DA Volvo 1996-2022 Yes, test by your side
JLR SDD2 Jaguar Land rover 2006-2016 Yes, test by your side
GDS2 GM Buick Cadilac Chevlert 1995-2022 Yes, test by your side
Xentry Passthru Benz, Smart 1995-2022 Yes, test by your side
ISTA-D, ISTA-P BMW, Mini 1995-2022 Yes, test by your side
Consult III-R2R Nissan, Infiniti 1995-2022 Yes, test by your side

GODIAG GD101 J2534 Features:

  1. Support most all of J2534 compatible software (HDS, TIS, ODIS, JLR SDD, PCMFLash...).
  2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
  3. Support ECU reprogramming in J2534 mode with programming voltage.
  4. Supply free software for diagnosing J1979 compatible vehicles.

GODIAG GD101 J2534 Supported Car Models:

1.JLR SDD Software for Land Rover/Jaguar
Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines.
Support for X100, X150, X202, X250, X350, X351, X400 Jaguar vehicle lines.

2. HDS Software for Honda
Support for Accord, Civic, Crv, City, et al.

3. Toyota
Support for Camry, Rav4, Carolina, Prius, Lexus

4. ODIS VAG
Support for Vw, Audi, Seat, Skoda

5. GM GDS2 Software
Support for Buick, Chevrolet, Cadillac, etc.

GODIAG GD101 J2534 Protocol Configuration:

  1. ISO15765 (Standard/Extended frame).
  2. ISO9141.
  3. ISO14230.
  4. J1850 PWM (Support IFR and 2X speed mode).
  5. J1850 VPW (Support 4X speed mode).
  6. Programming voltage.
  7. Short to ground.
  8. ELM327 with command set version 1.3

GODIAG GD101 J2534 Hardware Configuration:

  1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
  2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
  3. J1850 PWM (OBDII PIN 2 and PIN 10).
  4. J1850 VPW (OBDII PIN 2).
  5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
  6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).

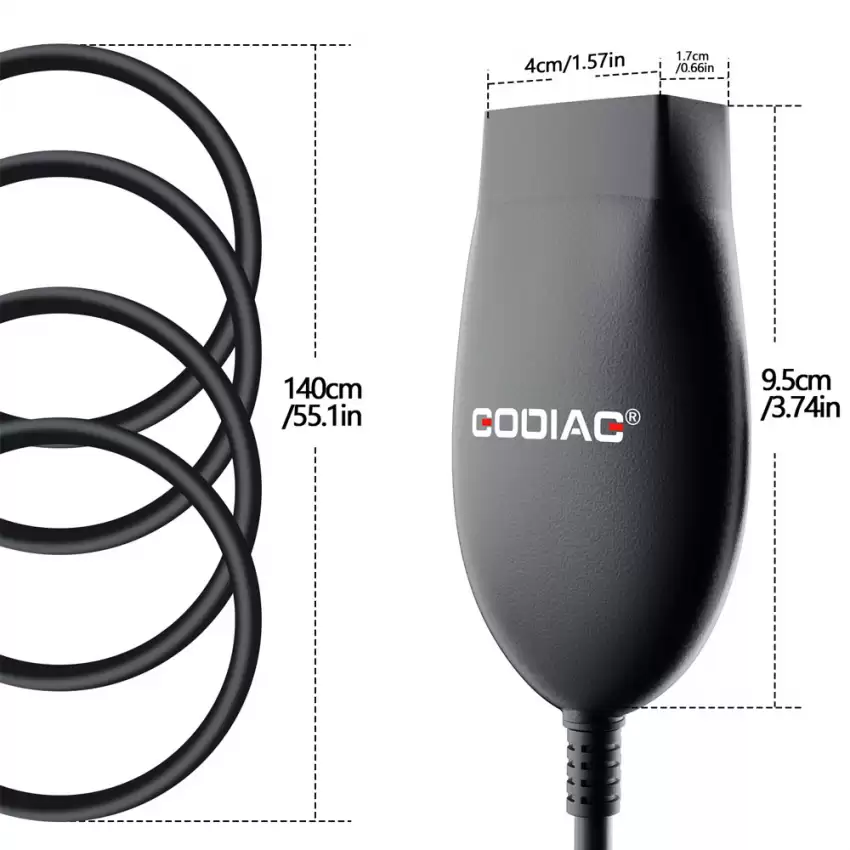

  7. Dimension(L*W*H): 95mm*55mm*23mm
  8. Environmental:-20℃-45℃(-4℉-113℉)
  9. Vehicle voltage requirements: 8-18V DC
  10. Vehicle connection: Molded DLC3(OBDII-16)
  11. Host connection: USB 2.0
